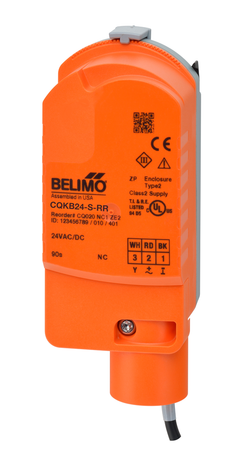

Belimo CQKB24-S-RR

Name: Belimo CQKB24-S-RR
Brand: Belimo
SKU: CS3347487
Price: 144.73 USD
Availability: InStock

SKU: CS3347487MPN: CQKB24-S-RR

Valve Actuator, Electronic fail-safe, AC/DC 24 V, On/Off, 1 x SPST, Normally Closed, Fail-safe position Closed

$144.73

Unit

7 in stock

Quantity

remove

add

Documents

Valve Actuator, Electronic fail-safe, AC/DC 24 V, On/Off, 1 x SPST, Normally Closed, Fail-safe position Closed

Control	On/Off
Auxillary Switch	1 x SPST
Fail-Safe	Electronic fail-safe 0…100%
Nominal Voltage	AC/DC 24 V
Transformer Sizing	5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	2.5 W
Power Consumption In Rest Position	0.5 W
Electrical Connection	18 GA plenum cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic thoughout 0…90° rotation
Angle Of Rotation	90°, adjustable with mechanical stop
Position Indication	pointer
Running Time (Motor)	75 s
Running Time Fail-Safe	<60 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	1.7…40°C
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP40
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	UL94-5VA
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	35 dB(A)
Quality Standard	ISO 9001
Noise Level, Fail-Safe	35 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Auxiliary Switch	1 x SPST, 1 A resistive @ DC 30 V,
Fail-Safe Function	Electronic fail-safe
Control Type Web	On/Off
Fail-Safe	YES
