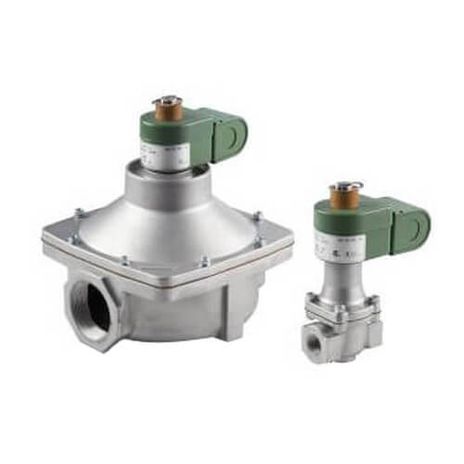

ASCO S262SH02N3EG5

120/60 Vac ¾” Npt. 2-way N.o. Gas Vent Valve

Used in double block and vent systems and mounted in the vent piping between the shutoff valves. Provides on-off control of fuel “gas in vent line. Must be vented to the outside atmosphere. Aluminum body. ¾” thru 2-½ pipe size.

Features:

• 2-way normally open operation
• Die-cast aluminum bodies
• Zero differential piloted diaphragm
• Valves provided with pipe tap(s) with plug for routine testing
• Suitable for ambient temperatures up to 175°F

Construction:

* Body: Aluminum
* Seals and Disc: NBR
* Washer: 302 Stainless Steel
* Core Tube: 305 Stainless Steel
* Core and Plugnut: 430F Stainless Steel
* Core Guide: CA
* Springs: 302F Stainless Steel
* Shading Coil: Copper
* Body Gasket: Cork
* Sleeve and Pin: 416 Stainless Steel
* Pipe Plug: Zinc\-Plated Steel
