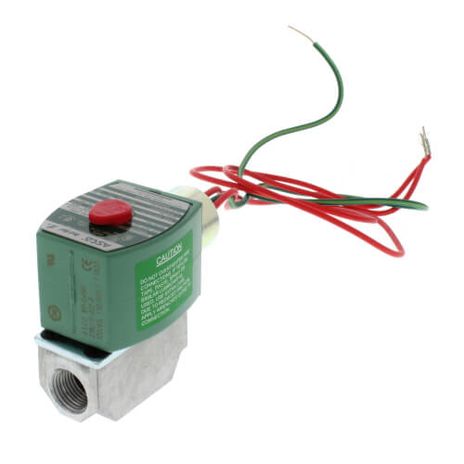

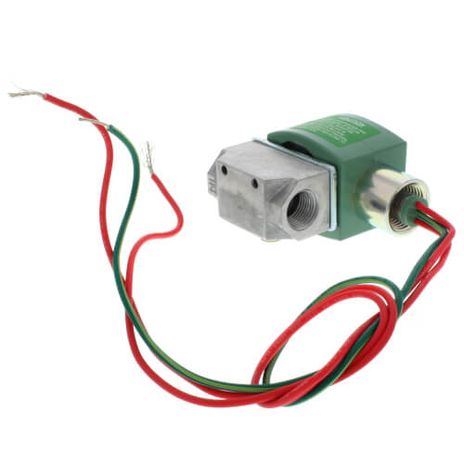

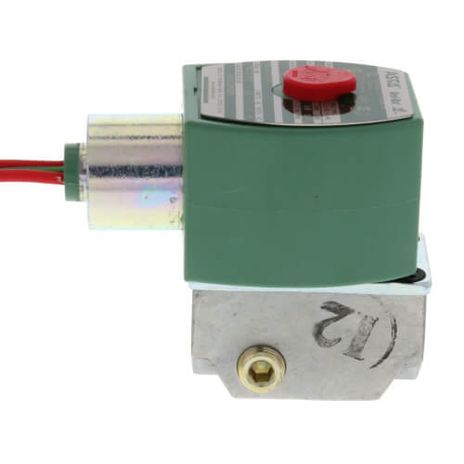

ASCO SV311A02N6AF5

120v ⅛” 2-way N.c. Pilot Gas Shutoff Valve

ASCO Valve’s Fuel, Gas \& Oil solenoid valves handle combustion system pilot \& main line fuel shutoff \& control needs. Our Fuel, Gas \& Oli solenoid valves are available in 2-way normally closed, normally open, manual reset, and 3-way diversion. ASCO valves are available in brass, aluminum, and stainless steel. Features include junction box, pipe taps, visual indication, proof of closure, leading agency approvals, and pipe connections from ⅛” to 3”. Most valves are rated for -40ºF service for outdoor installation in frigid climates.

Features:

• 2-way normally closed operation
• For gas pilot control of commercial and industrial gas burners
• Direct lift with resilient soft seating for tight shutoff
• Valves provided with ⅛” NPT downstream pipe tap with plug for routine testing
• Suitable for ambient temperatures up to 175°F

Construction:

• Body: Aluminum
• Seals and Disc: NBR
• Core Tube: 305 Stainless Steel
• Core and Plugnut: 430F Stainless Steel
• Springs: 17-7PH
• Shading Coil: Copper
• Pipe Plug: Zinc-Plated Steel
