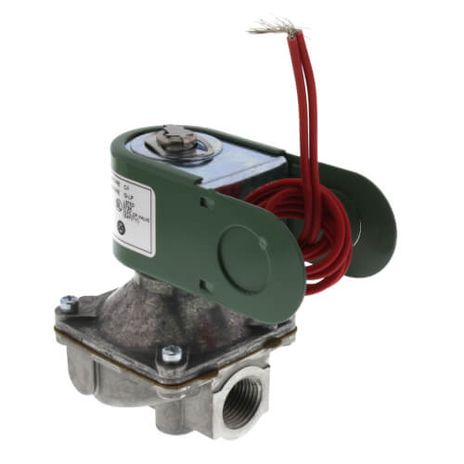

ASCO K3A441U

24v ½” Npt. 2-way N.c. Safety Shutoff Gas Valve 350,0

ASCO Valve’s Fuel, Gas \& Oil solenoid valves handle combustion system pilot \& main line fuel shutoff \& control needs. Our Fuel, Gas \& Oli solenoid valves are available in 2-way normally closed, normally open, manual reset, and 3-way diversion. ASCO valves are available in brass, aluminum, and stainless steel. Features include junction box, pipe taps, visual indication, proof of closure, leading agency approvals, and pipe connections from ⅛” to 3”. Most valves are rated for -40ºF service for outdoor installation in frigid climates.

Features:

• 2-way normally closed operation
• Die-cast aluminum bodies
• For positive shutoff on pilot or main gas lines of commercial and industrial gas burners
• Valves provided with ⅛” NPT upstream and dowstream pipe tap with plug for routine testing
• Suitable for ambient temperatures up to 175°F

Construction:

• Body: Aluminum
• Seals and Disc: NBR
• Washer: 302 Stainless Steel
• Core Tube: 305 Stainless Steel
• Core and Plugnut: 430F Stainless Steel
• Core Guide: CA
• Springs: 302F Stainless Steel
• Shading Coil: Copper
• Body Gasket: Cork
• Pipe Plug: Zinc-Plated Steel

Solenoid Enclosures:

Standard: Type 1 General Purpose Junction Box Housing with two ⅞” knock-outs.

Valve Response Time:

• Opening Time: Less than 1 second
• Closing Time: Less than 1 second
