Turck WS56PL-S-0
SKU: CS3892482MPN: WS56PL-S-0Alternate Part #: 100007819
100007819 - FIELD WIREABLE,M12POWERFAST
$40.76
UnitAvailable on backorder
Product Details
Power Field Wireable
M12 Power

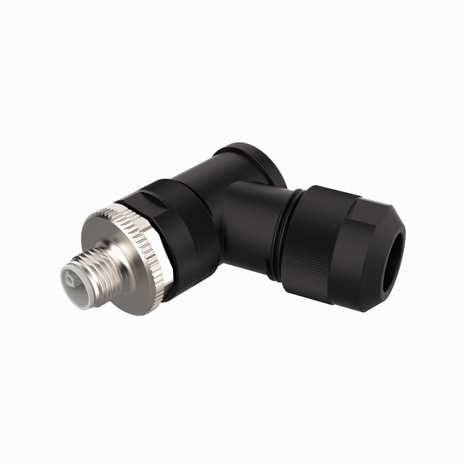

Male Connector M12 × 1, Angled
- Right angle Male M12 powerfast Field Wireable
- 5 pins
- Screw termination
- Plastic housing
- Screw terminal connection
- 5-pin (4+FE)
- Cable feedthrough: 8.0…13.0 mm
- Terminal capacity:
- Max. 1.5 mm² or 16 AWG (with cable end sleeve) - Max. 2.5 mm² or 14 AWG (without cable end sleeve)
Attributes
| Acceptable Cable Diameter | 8…13 mm |
| Application | Power (>11 Amps) |
| Connection Mode | Screw/clamp connection |
| Connector A | Male, M12 × 1, Right angle, L-code |
| Coupling Nut Screw Material | Die-cast Zinc, GD-Zn, Nickel-plated |
| Current | 12 A |
| Ecl Ss Code V5 1 4 | 27279201 -/- Connectivity (accessories sensors) |
| Housing Material | Plastic, PA |
| Number Of Contacts | 4+FE |
Specifications
| SKU | CS3892482 |
|---|---|
| MPN | WS56PL-S-0 |
| Alternate Part # | 100007819 |
