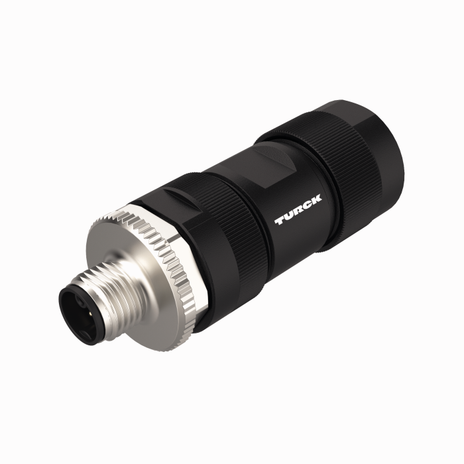

Turck RS56PK-S-0
SKU: CS3855848MPN: RS56PK-S-0Alternate Part #: U2-33829
U2-33829 - FIELD WIREABLE,M12POWERFAST
$39.44
UnitAvailable on backorder
Product Details
Power Field Wireable
M12 Power
Male Connector M12 × 1, Straight
- Straight Male M12 powerfast Field Wireable
- 5 pins
- Screw termination
- Plastic housing
- Screw-clamp terminal
- 5-pin (4+PE)
- Cable feedthrough: 8.0…13.0 mm
- Terminal capacity:
- Max. 1.5 mm² or 16 AWG (with cable end sleeve) - Max. 2.5 mm² or 14 AWG (without cable end sleeve)
Attributes
| Acceptable Cable Diameter | 8…13 mm |
| Application | Power (>11 Amps) |
| Connection Mode | Screw/clamp connection |
| Connector A | Male, M12 × 1, Straight, K-code |
| Core Cross Section Clamping Ability | 16 mm² |
| Coupling Nut Screw Material | Zinc, GD-Zn, Nickel-plated |
| Current | 12 A |
| Ecl Ss Code V5 1 4 | 27279201 -/- Connectivity (accessories sensors) |
| Housing Material | Plastic, PA |
| Number Of Contacts | 5 |
| Voltage | 600 V |
Specifications
| SKU | CS3855848 |
|---|---|
| MPN | RS56PK-S-0 |
| Alternate Part # | U2-33829 |
