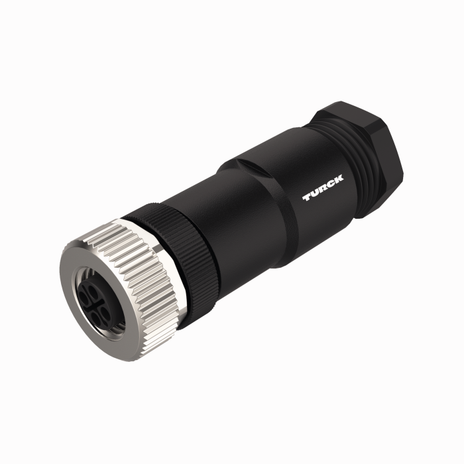

Turck RK46PS-S-0
SKU: CS3840326MPN: RK46PS-S-0Alternate Part #: U2-30825
U2-30825 - FIELD WIREABLE,M12POWERFAST
$32.96
UnitAvailable on backorder
Product Details
Power Field Wireable
M12 Power
Female Connector M12 × 1, Straight
- Straight Female M12 powerfast Field Wireable
- 4 pins
- Screw termination
- Plastic housing
- Screw-clamp terminal
- 4-pin (3+PE)
- Cable feedthrough: 8.0…10.0 mm
- Terminal capacity:
- Max. 1.5 mm² or 16 AWG (with cable end sleeve) - Max. 2.5 mm² or 14 AWG (without cable end sleeve)
Attributes
| Acceptable Cable Diameter | 8…10 mm |
| Application | Power (>11 Amps) |
| Connection Mode | Screw/clamp connection |
| Connector A | Female, M12 × 1, Straight, S-code |
| Core Cross Section Clamping Ability | 16 mm² |
| Coupling Nut Screw Material | Zinc, GD-Zn, Nickel-plated |
| Current | 12 A |
| Ecl Ss Code V5 1 4 | 27279201 -/- Connectivity (accessories sensors) |
| Housing Material | Plastic, PA |
| Number Of Contacts | 4 |
| Voltage | 600 V |
Specifications
| SKU | CS3840326 |
|---|---|
| MPN | RK46PS-S-0 |
| Alternate Part # | U2-30825 |
