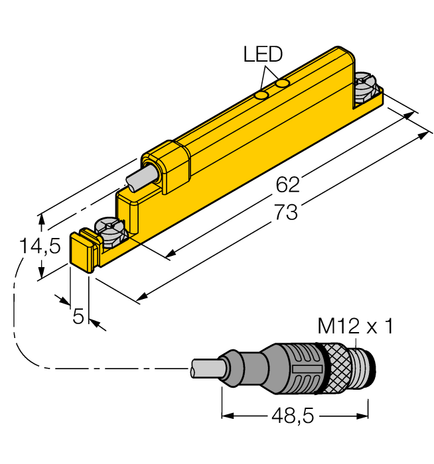

Turck WIM45-UNTL-LIU5X2-0.3-RS4
SKU: CS3884839MPN: WIM45-UNTL-LIU5X2-0.3-RS4Alternate Part #: 1536621UPC/EAN: 4047101200492
1536621 - INTEL., RECT., ANALOG, PIGTAIL
$310.06
UnitAvailable on backorder
Product Details
Linear Position Sensor
For Analog Monitoring of Pneumatic Cylinders
- Plastic, PA12‐GF30
- For direct mounting on pneumatic T-groove cylinders
- Magnetic field status displayed via two LEDs
- Measured value storage
- Hardly affected by external magnetic fields
- 4-wire, 15…30 VDC
- 0…10 V and 4…20 mA
- Pigtail with male end, M12 x 1
Attributes
| Ambient Temperature | -25…+70 °C |
| Current Output | 4…20 mA |
| Customs Tariff Number | 85365019900.0000 |
| Ecl Ss Code V5 1 4 | 27270705 -/- Magnetic linear position sensor |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Plastic, PA12-GF30 |
| Measuring Principle | Magnetic |
| Measuring Range | 45 mm [1.77 in] |
| Operating Voltage | 15…30 VDC |
| Output Function | Analog output |
| Protection Class | IP67 |
| Voltage Output | 0…10 V |
Specifications
| SKU | CS3884839 |
|---|---|
| MPN | WIM45-UNTL-LIU5X2-0.3-RS4 |
| Alternate Part # | 1536621 |
| UPC/EAN | 4047101200492 |
You may also like

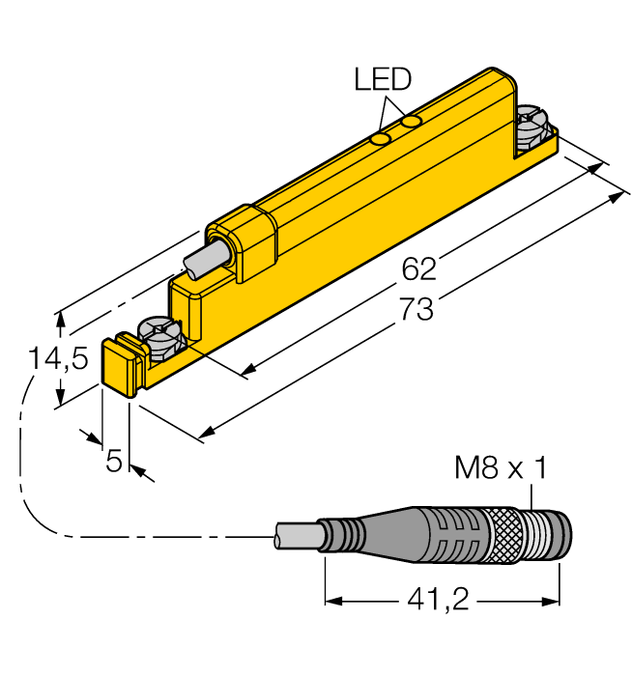

Turck WIM45-UNTL-LIU5X2-0.3-PSG4M
$310.06Unit

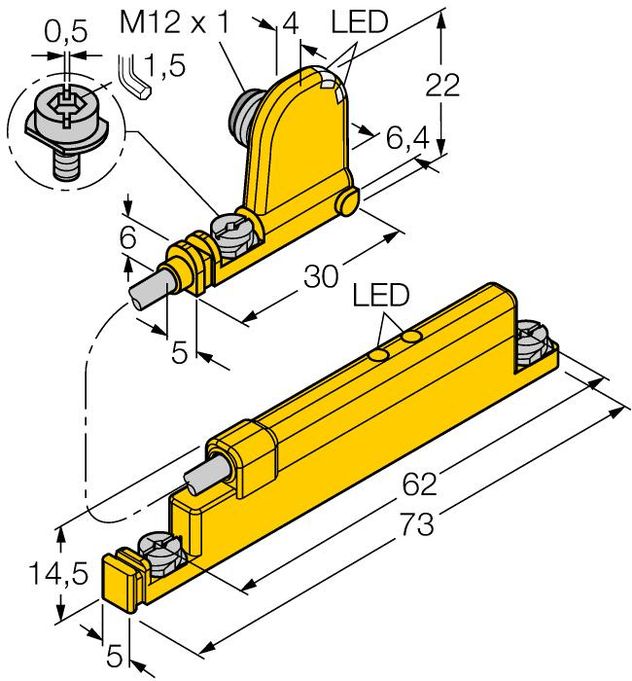

Turck WIM45-UNTL-0.3-BIM-UNT-LUAP6X4-H114 1
Contact us for pricing and availability

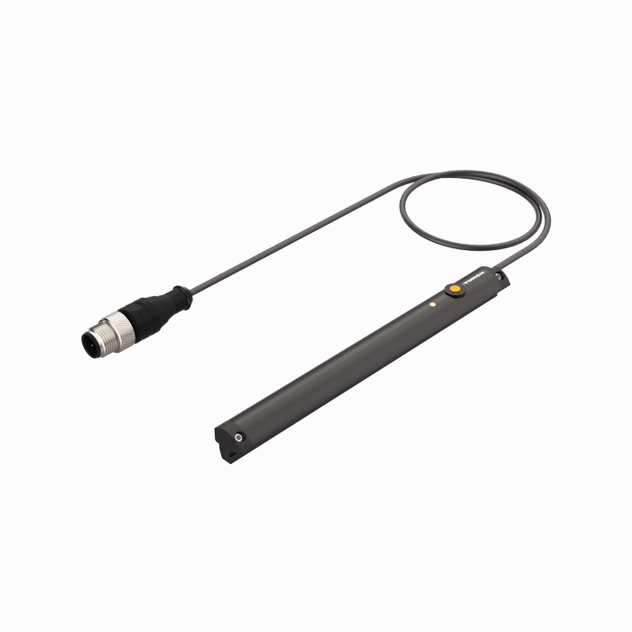

Turck WIM128-UNTL-IOL-0.3-RS4
