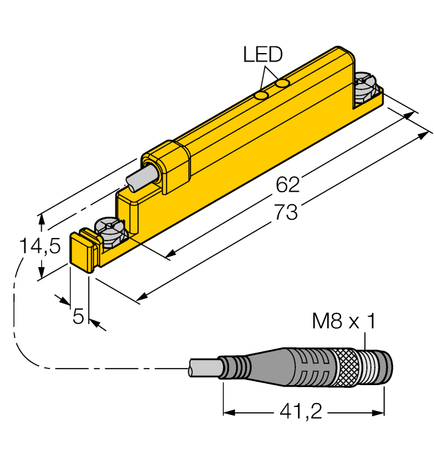

Turck WIM45-UNTL-LIU5X2-0.3-PSG4M
SKU: CS3884838MPN: WIM45-UNTL-LIU5X2-0.3-PSG4MAlternate Part #: 1536620UPC/EAN: 4047101200485
1536620 - INTEL., RECT., ANALOG, PIGTAIL
$310.06
UnitAvailable on backorder
Product Details
Linear Position Sensor
For Analog Monitoring of Pneumatic Cylinders
- Plastic, PA12‐GF30
- For direct mounting on pneumatic T-groove cylinders
- Magnetic field status displayed via two LEDs
- Measured value storage
- Hardly affected by external magnetic fields
- 4-wire, 15…30 VDC
- 0…10 V and 4…20 mA
- Pigtail with male end, M8 x 1
Attributes
| Ambient Temperature | -25…+70 °C |
| Current Output | 4…20 mA |
| Customs Tariff Number | 85365019900.0000 |
| Ecl Ss Code V5 1 4 | 27270705 -/- Magnetic linear position sensor |
| Electrical Connection | Cable with connector, M8 × 1 |
| Housing Material | Plastic, PA12-GF30 |
| Measuring Principle | Magnetic |
| Measuring Range | 45 mm [1.77 in] |
| Operating Voltage | 15…30 VDC |
| Output Function | Analog output |
| Protection Class | IP67 |
| Voltage Output | 0…10 V |
Specifications
| SKU | CS3884838 |
|---|---|
| MPN | WIM45-UNTL-LIU5X2-0.3-PSG4M |
| Alternate Part # | 1536620 |
| UPC/EAN | 4047101200485 |
