Turck BIM-UNTK-AP7X-0.3-RS4
SKU: CS3683087MPN: BIM-UNTK-AP7X-0.3-RS4Alternate Part #: 4686021UPC/EAN: 4047101276923
4686021 - TRANS., RECT., DC, PIGTAIL M12
$88.51
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
Compact design for small hydraulic cylinders
- For T-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylindrical housings.
- One-hand mounting possible
- Tool for fine adjustments and stopper directly mountable on the sensor
- Stable mounting
- Magneto-resistive sensor
Attributes
| Ambient Temperature | -25…+70 °C |

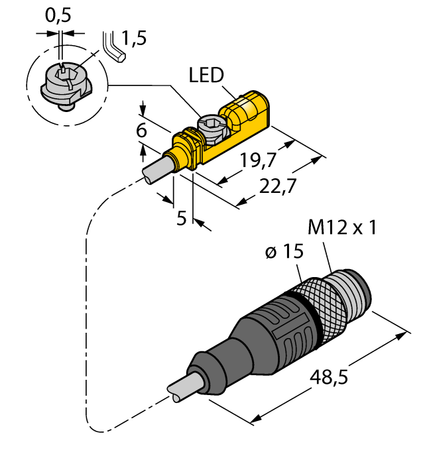

| Construction Size | 19.7 x 5 x 6 mm, UNTK |
| Customs Tariff Number | 85365019900.0000 |
| Cylindrical Design | Dovetail groove cylinder, T-groove cylinder, Round cylinder, Tie-rod cylinder |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Plastic, PP |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
Specifications
| SKU | CS3683087 |
|---|---|
| MPN | BIM-UNTK-AP7X-0.3-RS4 |
| Alternate Part # | 4686021 |
| UPC/EAN | 4047101276923 |
