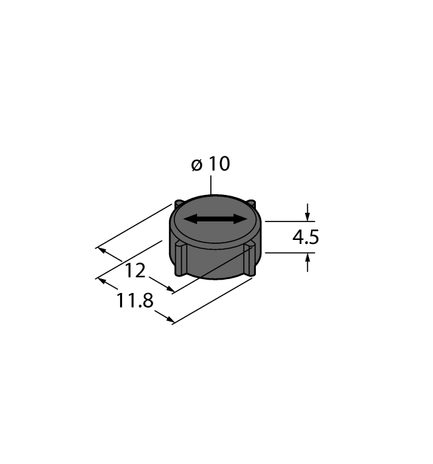

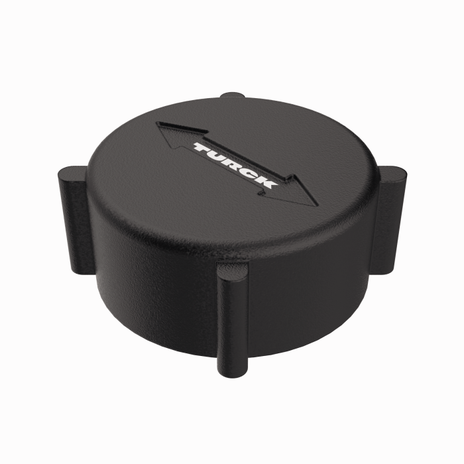

Turck TW-R12-M-B146

7030500 - HF

HF Tag

• Tag for direct mounting on metal

• The mounting position (arrow) as well as the alignment of the tag towards the read/write head must be observed under all circumstances in order to achieve a maximum read/write distance
• When installed recessed in metal by 1 mm, the write/read distance reduces to 30%
• Extended storage temperature range: The tags must undergo adequate stress tests within the proposed temperature processes before deployment.
• The following stress test was performed on this tag:  Cyclic temperature stress: 5 min. at 20 °C – 5 min. at 160 °C.Number of tested cycles: 100TThis successfully performed test does not imply suitability for a specific high-temperature application, but merely serves as proof of the basic usability.

• EEPROM, memory 146 byte

• For direct mounting on metal
