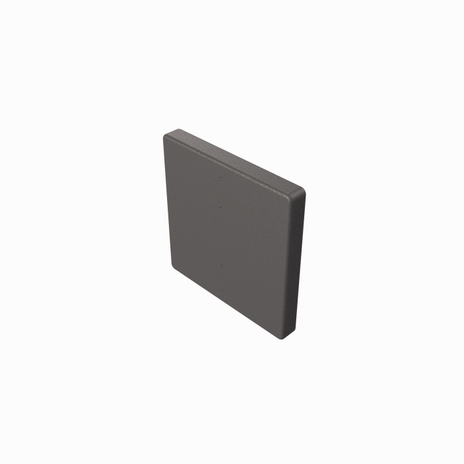

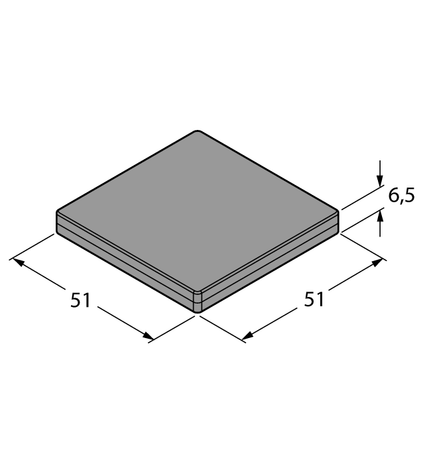

Turck TW-Q51WH-HT-B128

7030661 - HF

HF Tag

High Temperature

• The high-temperature tags must undergo adequate stress tests within the proposed temperature processes before deployment.
• The following stress test was performed on this tag:Cyclic temperature stress: 20 min. at 20 °C – 20 min. at 220 °C.Number of tested cycles: 1500This successfully performed test does not imply suitability for a specific high-temperature application, but merely serves as proof of the basic usability.
• The TH-Q51S-HT and TH-Q51T-HT brackets protect the tag from mechanical loads and allow the mounting on metal.

• EEPROM, memory 128 byte

• Not for direct mounting on metal
