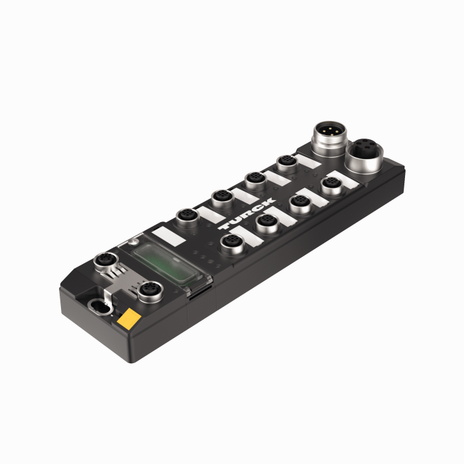

Turck TBEN-L4-8IOLA
SKU: CS5980513MPN: TBEN-L4-8IOLAAlternate Part #: 100028459UPC/EAN: 4047101540697
$904.67
UnitAvailable on backorder
Product Details
Compact Multiprotocol I/O Module for Ethernet
8 IO-Link Master Channels
16 Universal Digital PNP Channels, Channel Diagnostics
- PROFINET device, EtherNet/IP device or Modbus TCP slave
- Integrated Ethernet switch
- Supports 10 Mbps/100 Mbps
- 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
- PROFINET S2 system redundancy
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- 4-pin ⅞″ male connector for power supply
- ATEX Zone 2/22
- 5-pin M12 slots for IO-Link master
- IO-Link master port class A
- IO-Link protocol 1.1
- Programmable ARGEE
Attributes
| Ambient Temperature | -40…+70 °C |
| Approvals | cULus |
| Connection Technology Signal | M12 |
| Customs Tariff Number | 85176200000.0000 |
| Device Type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Ecl Ss Code V5 1 4 | 27250302 -/- Digital I/O module (periphery) |
| Fieldbus Connection Technology | 2 x M12, 4-pin, D-coded |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Fieldbus Transmission Rate | 10/100 Mbps |
| Protection Class | IP65/IP67/IP69K |
| Signal Type | IO-Link, Digital output, Digital input/output, Digital input |
Specifications
| SKU | CS5980513 |
|---|---|
| MPN | TBEN-L4-8IOLA |
| Alternate Part # | 100028459 |
| UPC/EAN | 4047101540697 |
