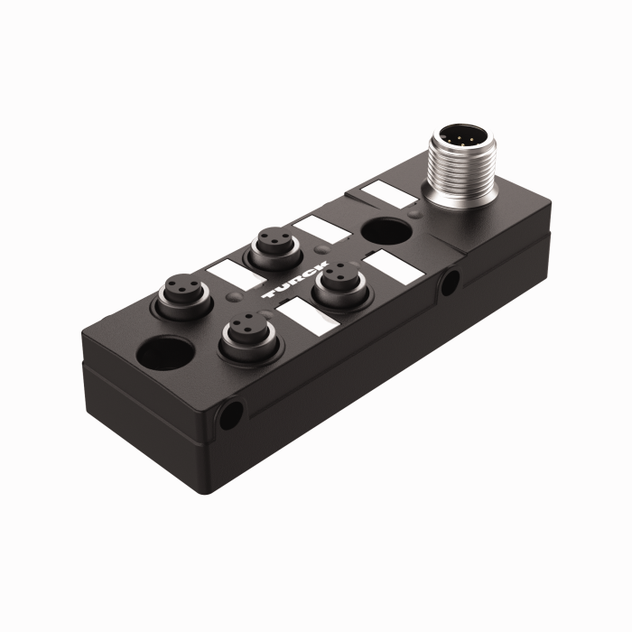

Turck TB-4M8Z-3N2-FS8
SKU: CS3877104MPN: TB-4M8Z-3N2-FS8Alternate Part #: U2-29189
U2-29189 - J-BOX,M8PICOFAST
$124.00
UnitAvailable on backorder
Product Details
Passive Actuator/Sensor Junction Box, 4 Ports
Ø 8 mm, I/O Port with M12 Male Connector for the Supply Cable
- Housing material: PA 6 GF30
- Housing color: Black
- Fully encapsulated
- Protection class: IEC: IP67; NEMA: 1, 3, 4, 6P
- CE compliant
- RoHS compliant
- LED (NPN circuit)
- I/O port: 3-pin
Attributes
| Ampacity | 2 A per contact, total current 2 A |
| Approvals | CE, UKCA, RoHS |
| Customs Tariff Number | 85366990990.0000 |
| Display Switching State | LED, yellow |
| Homerun Connector | Male, M12 × 1, Top exit |
| Housing Material | Plastic, PA6-GF30 |
| I O Port | Female, Ø 8 mm |
| Number Of Contacts | 8 |
| Number Of Ports | 4.0000 |
| Switching Function | NPN |
| Voltage | 30 V |
Specifications
| SKU | CS3877104 |
|---|---|
| MPN | TB-4M8Z-3N2-FS8 |
| Alternate Part # | U2-29189 |
