Turck TB-4M8Z-3-5
SKU: CS3877101MPN: TB-4M8Z-3-5Alternate Part #: U2-31576
U2-31576 - J-BOX,M8PICOFAST
$140.83
UnitAvailable on backorder
Product Details

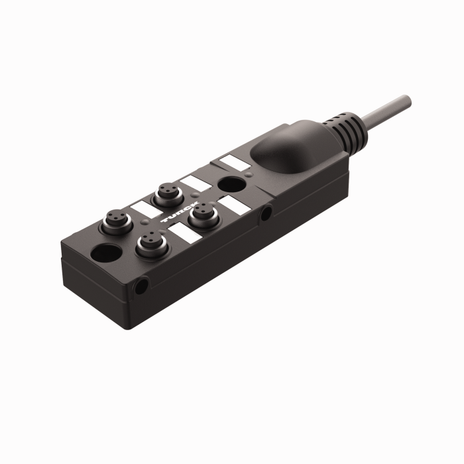

Passive Actuator/Sensor Junction Box, 4 Ports
Ø 8 mm, I/O Slot with Integral Homerun Cable
- Housing material: Nylon
- Housing color: Black
- Fully encapsulated
- Protection class: IEC: IP67
- CE compliant
- RoHS compliant
- I/O port: 3-pin
- General Purpose Cable
- Black PVC jacket, shielded, 6X24 AWG
- -40 Cold Bend Rating
- Flame Ratings: UL1061, CSA FT1
Attributes
| Ampacity | 2 A per signal contact, total current 6 A |
| Approvals | CE, UKCA, RoHS |
| Customs Tariff Number | 85366930000.0000 |
| Homerun Connector | Cable, Side exit |
| Housing Material | Plastic, PA6-GF30 |
| I O Port | Female, Ø 8 mm |
| Number Of Contacts | 3 |
| Number Of Ports | 4.0000 |
| Voltage | 30 V |
Specifications
| SKU | CS3877101 |
|---|---|
| MPN | TB-4M8Z-3-5 |
| Alternate Part # | U2-31576 |
