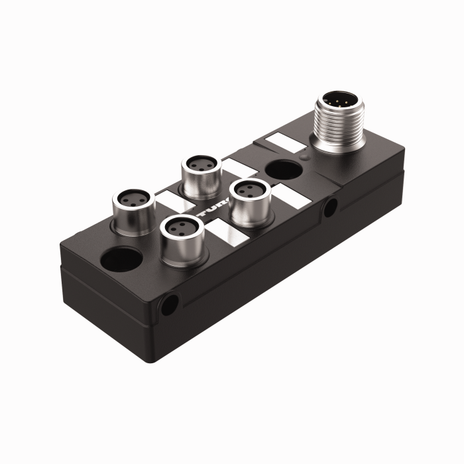

Turck TB-4M8M-3-FS8
SKU: CS3877078MPN: TB-4M8M-3-FS8Alternate Part #: U2-28812
U2-28812 - J-BOX,M8PICOFAST
$101.39
UnitAvailable on backorder
Product Details
Passive Actuator/Sensor Junction Box, 4 Ports
M8 x 1 I/O port with M12 homerun
- Housing material: PA 6 GF30
- Housing color: Black
- Fully encapsulated
- Protection class: IP67, IP68, IP69, IP69K; NEMA: 1, 3, 4, 6P
- CE compliant
- RoHS compliant
- I/O port: 3-pin
Attributes
| Ampacity | 2 A per contact, total current 2 A |
| Approvals | CE, UKCA, RoHS |
| Customs Tariff Number | 85366990990.0000 |
| Homerun Connector | Male, M12 × 1, Top exit |
| Housing Material | Plastic, PA6-GF30 |
| I O Port | Female, M8 × 1 |
| Number Of Contacts | 8 |
| Number Of Ports | 4.0000 |
| Voltage | 30 V |
Specifications
| SKU | CS3877078 |
|---|---|
| MPN | TB-4M8M-3-FS8 |
| Alternate Part # | U2-28812 |
