Turck TB-4M8M-4-FS12

SKU: CS3877099MPN: TB-4M8M-4-FS12Alternate Part #: U2-28309

U2-28309 - J-BOX,M8PICOFAST

Turck TB-4M8M-4-FS12
Turck TB-4M8M-4-FS12
Turck TB-4M8M-4-FS12
Turck TB-4M8M-4-FS12
$125.22
Unit
Available on backorder
remove
add

Product Details

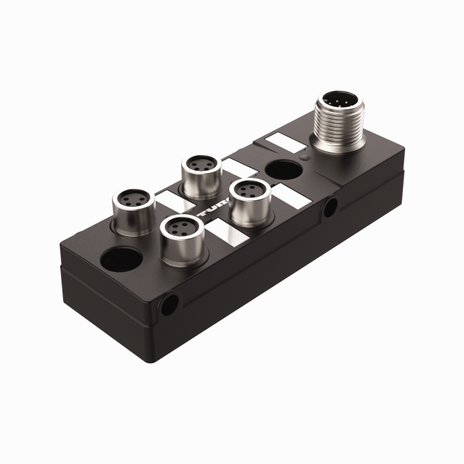

Passive Actuator/Sensor Junction Box, 4 Ports

M8 x 1 I/O port with M12 homerun

  • Housing material: PA 6 GF30
  • Housing color: Black
  • Fully encapsulated
  • Protection class: IP67, IP68, IP69, IP69K; NEMA: 1, 3, 4, 6P
  • CE compliant
  • RoHS compliant
  • I/O port: 4-pin

Attributes

Ampacity 2 A per contact, total current 2 A
Approvals CE, UKCA, RoHS
Customs Tariff Number 85366990990.0000
Homerun Connector Male, M12 × 1, Top exit
Housing Material Plastic, PA6-GF30
I O Port Female, M8 × 1
Number Of Contacts 12
Number Of Ports 4.0000
Voltage 30 V

Specifications

SKUCS3877099
MPNTB-4M8M-4-FS12
Alternate Part #U2-28309
