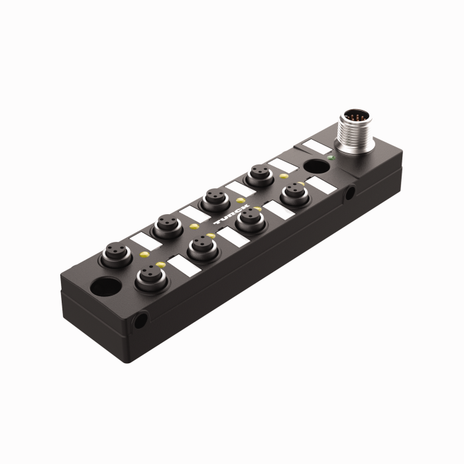

Turck TB-8M8Z-3P2-FS12
SKU: CS3877183MPN: TB-8M8Z-3P2-FS12Alternate Part #: U2-28313
U2-28313 - J-BOX,M8PICOFAST
$157.46
UnitAvailable on backorder
Product Details
Passive Actuator/Sensor Junction Box, 8 Ports
M8 snap, 3 pole I/O port with M12 homerun
- Housing material: PA 6 GF30
- Housing color: Black
- Fully encapsulated
- Protection class: IEC: IP67; NEMA: 1, 3, 4, 6P
- CE compliant
- RoHS compliant
- LED (PNP circuit)
- I/O port: 3-pin
Attributes
| Ampacity | 2 A per contact, total current 2 A |
| Approvals | CE, UKCA, RoHS |
| Customs Tariff Number | 85366990990.0000 |
| Display Switching State | LED, yellow |
| Homerun Connector | Male, M12 × 1, Top exit |
| Housing Material | Plastic, PA6-GF30 |
| I O Port | Female, Ø 8 mm |
| Number Of Contacts | 12 |
| Number Of Ports | 8.0000 |
| Switching Function | PNP |
| Voltage | 30 V |
Specifications
| SKU | CS3877183 |
|---|---|
| MPN | TB-8M8Z-3P2-FS12 |
| Alternate Part # | U2-28313 |
