All ProductsTurck

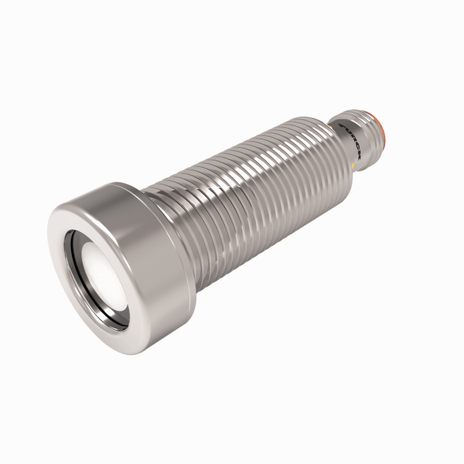

Turck RU100U-EMT18M-AP8X2-H1151

SKU: CS3875229MPN: RU100U-EMT18M-AP8X2-H1151Alternate Part #: 100004304UPC/EAN: 4047101497502

100004304 - DIF., BARREL, DC, CON. M12

Turck RU100U-EMT18M-AP8X2-H1151, RU100U-EMT18M-UP8X2-H1151
Turck RU100U-EMT18M-AP8X2-H1151, RU100U-EMT18M-UP8X2-H1151
Turck RU100U-EMT18M-AP8X2-H1151, RU100U-EMT18M-UP8X2-H1151
Turck RU100U-EMT18M-AP8X2-H1151, RU100U-EMT18M-UP8X2-H1151
$570.33
Unit
Available on backorder
remove
add

Product Details

Ultrasonic Sensor

Diffuse Mode Sensor

  • Sonic transducer face with PTFE layer
  • • Stainless steel front attachment
  • Cylindrical housing M18, potted
  • Connection via M12 × 1 male connector
  • Temperature compensation
  • Blind zone: 15 cm
  • Range: 100 cm
  • Resolution: 1 mm
  • Aperture angle of sonic cone: ±16 °
  • PNP switching output
  • NO/NC programmable
  • IO-Link

Attributes

Ambient Temperature -5…+50 °C
Approvals CE, cULus
Communication Protocol IO-Link
Construction Size M18 x 1
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27272803 -/- Ultrasonic proximity switch
Electrical Connection Connector, M12 × 1
Function Proximity
Housing Material Stainless steel, 1.4404 (AISI 316L), PTFE-coated
Operating Mode Time of Flight
Operating Voltage 15…30 VDC
Output Function PNP
Protection Class IP67
Radiation Direction straight
Range 150…1000 mm
Resolution 1 mm
Special Feature Chemical-resistant
Switching Element Function NO/NC

Specifications

SKUCS3875229
MPNRU100U-EMT18M-AP8X2-H1151
Alternate Part #100004304
UPC/EAN4047101497502
