All ProductsTurck

Turck REI-E-112IA0E-2B1024-C

SKU: CS3832121MPN: REI-E-112IA0E-2B1024-CAlternate Part #: 100012073UPC/EAN: 4047101545685

100012073 - INCREMENTAL

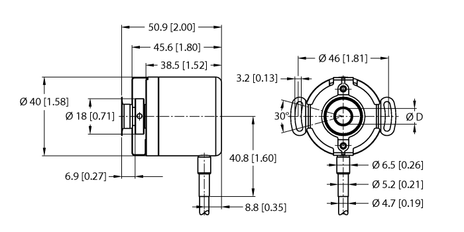

Turck REI-E-112I8E-2B1024-C, REI-E-112I8E-2B2500-C, REI-E-112IA0E-2B1024-C, REI-E-112IA0E-2B2500-C
$307.76
Unit
Available on backorder
remove
add

Product Details

Incremental Encoder

Efficiency Line

  • Flange with stator coupling, Ø 46 mm
  • Blind hole hollow shaft, Ø 6.35 mm (plug-in depth max. 18 mm)
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP64 on housing and shaft side
  • ‐20…+70 °C
  • Max. 4500 rpm
  • 10…30 VDC
  • Cable connection, 8-pole
  • Push-pull, with inverted signals
  • Pulse frequency max. 300 kHz
  • 1024 pulses per revolution

Attributes

Ambient Temperature -20…+70 °C
Customs Tariff Number 90318080000.0000
Ecl Ss Code V5 1 4 27270502 -/- Encoder, incremental
Electrical Connection Cable
Encoder Line Efficiency-Line
Flange Diameter Ø  46 mm
Flange Type Flange with stator coupling
Housing Material Aluminium
Operating Voltage 10…30 VDC
Output Function Push-Pull/HTL, with inverted signals
Output Type Incremental
Protection Class IP64
Protection Class Shaft IP64
Resolution Incremental 1024  ppr
Shaft Diameter D Mm 6.35 mm
Shaft Type Hollow shaft
Technology Optical

Specifications

SKUCS3832121
MPNREI-E-112IA0E-2B1024-C
Alternate Part #100012073
UPC/EAN4047101545685
