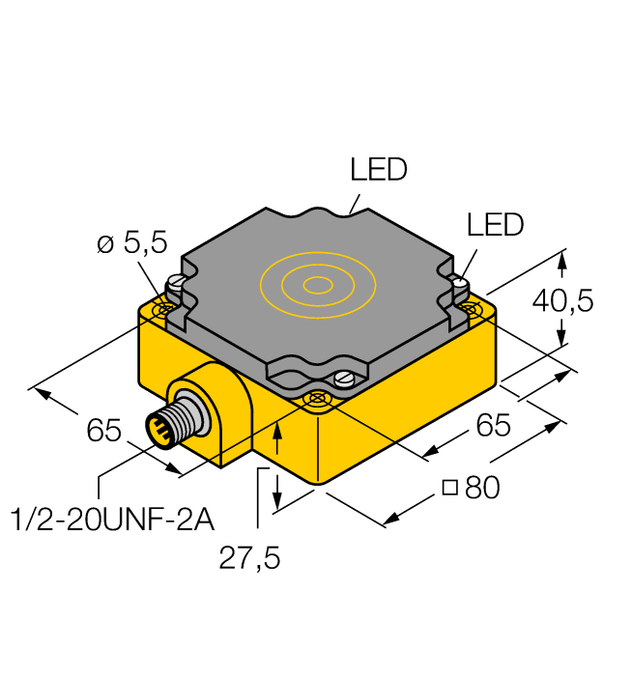

Turck NI75U-CP80-FDZ30X2-B3131
SKU: CS3814574MPN: NI75U-CP80-FDZ30X2-B3131Alternate Part #: 4280995
4280995 - UPROX, RECT., AC, CON. ½IN.
$691.78
UnitAvailable on backorder
Product Details
Inductive Sensor
With Increased Switching Distance
- Rectangular, height 41 mm
- Plastic, PBT‐GF30‐V0
- Factor 1 for all metals
- Resistant to magnetic fields
- Large coverage
- Extended temperature range
- High switching frequency
- AC 2-wire, 20…250 VDC
- DC 2-wire, 10…300 VDC
- NC/NO programmable
- ½” connector
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | 80 x 80 x 41 mm, CP80 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, ½″ |
| Housing Material | Plastic, PBT-GF30-V0 |
| Mounting | Non-flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | Connection programmable, 2-wire |
| Protection Class | IP67 |
| Rated Switching Distance | 75 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.010 kHz |
Specifications
| SKU | CS3814574 |
|---|---|
| MPN | NI75U-CP80-FDZ30X2-B3131 |
| Alternate Part # | 4280995 |
