Turck NI5U-Q10S-AN6X
SKU: CS3814524MPN: NI5U-Q10S-AN6XAlternate Part #: 1609365
1609365 - UPROX, RECT., DC, CABLE
Contact us for pricing and availability
Product Details
Inductive Sensor
With Extended Switching Distance
- Rectangular, height 10.2 mm
- Active face, lateral
- Cable outlet to all sides
- Plastic, PP-GF20
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Resistant to magnetic fields
- Auto-compensation protects against pre-damping
- Flush mounted installation on up to 4 sides
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- Cable connection
Attributes
| Ambient Temperature | -30…+85 °C |

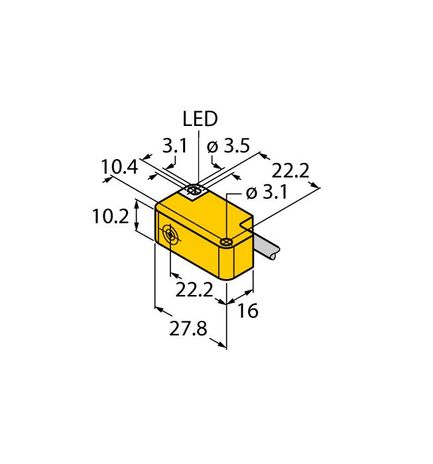

| Construction Size | 27.8 x 16 x 10.2 mm, Q10S |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Plastic, PP-GF20 |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP68 |
| Rated Switching Distance | 5 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3814524 |
|---|---|
| MPN | NI5U-Q10S-AN6X |
| Alternate Part # | 1609365 |
