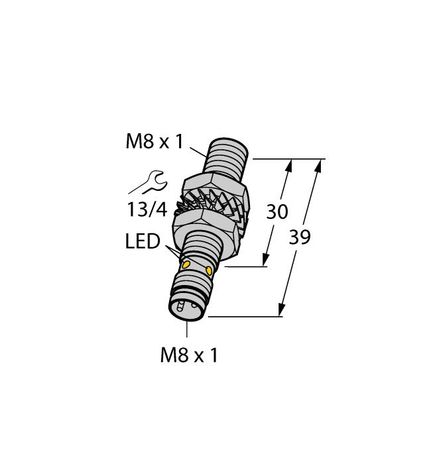

Turck BI3U-EMT08-AN6X-V1131
SKU: CS3789229MPN: BI3U-EMT08-AN6X-V1131Alternate Part #: 4602157
4602157 - UPROX, BARREL, DC, CON. M8
Contact us for pricing and availability
Product Details
Inductive Sensor
- Threaded barrel, M8 x 1
- Stainless steel, PTFE-coated
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Large switching distance
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- M8 x 1 male connector
Attributes
| Ambient Temperature | 0…+60 °C |
| Construction Size | M8 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M8 × 1 |
| Housing Material | Stainless steel, 1.4427 SO, PTFE-coated |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP68 |
| Rated Switching Distance | 3 mm |
| Special Feature | uprox3, Resistant to magnetic fields, Factor 1, PTFE-coated |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3789229 |
|---|---|
| MPN | BI3U-EMT08-AN6X-V1131 |
| Alternate Part # | 4602157 |
