Turck NI30U-MT30E-AP6X
SKU: CS3814256MPN: NI30U-MT30E-AP6XAlternate Part #: 1646619UPC/EAN: 4047101286984
1646619 - UPROX, BARREL, DC, CABLE
$172.57
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance

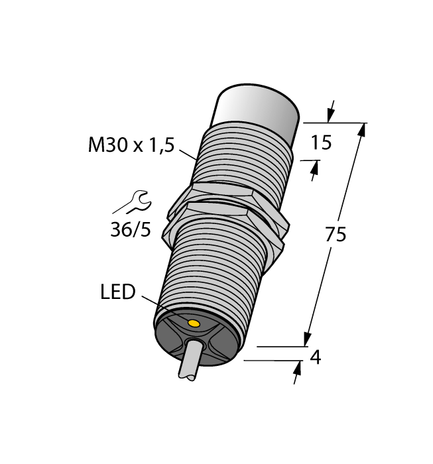

- Threaded barrel, M30 x 1.5
- Long version
- Brass, PTFE-coated
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Large switching distance
- Integrated protection against predamping
- Little metal-free spaces
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Cable connection
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Metal, CuZn, PTFE-coated |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 30 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3814256 |
|---|---|
| MPN | NI30U-MT30E-AP6X |
| Alternate Part # | 1646619 |
| UPC/EAN | 4047101286984 |
