Turck NI30U-M30E-AP6X-H1141
SKU: CS3814250MPN: NI30U-M30E-AP6X-H1141Alternate Part #: 1644756UPC/EAN: 4047101133790
1644756 - UPROX, BARREL, DC, CON. M12
$152.29
UnitAvailable on backorder
Product Details

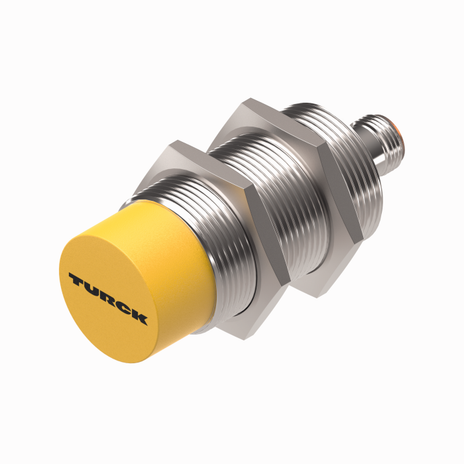

Inductive Sensor
With Extended Switching Distance

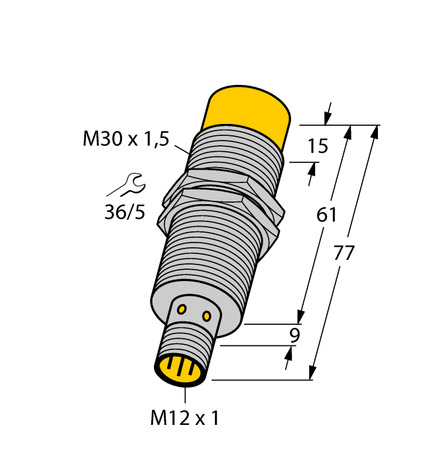

- Threaded barrel, M30 x 1.5
- Long version
- Chrome-plated brass
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Large switching distance
- Integrated protection against predamping
- Little metal-free spaces
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, CuZn, Chrome-plated |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 30 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3814250 |
|---|---|
| MPN | NI30U-M30E-AP6X-H1141 |
| Alternate Part # | 1644756 |
| UPC/EAN | 4047101133790 |
