Turck NI30U-EM30WDTC-AP6X
SKU: CS3814244MPN: NI30U-EM30WDTC-AP6XAlternate Part #: 1634765UPC/EAN: 4047101209914
1634765 - UPROX, BARREL, DC, TERMINALS
$198.43
UnitAvailable on backorder
Product Details
Inductive Sensor
For the Food Industry

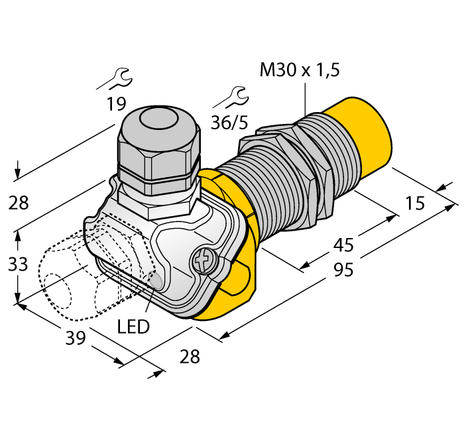

- Threaded barrel, M30 x 1.5
- Stainless steel, 1.4404
- Front cap made of liquid crystal polymer
- Factor 1 for all metals
- Resistant to magnetic fields
- For temperatures of -40 °C…+100 °C
- High protection class IP69K for harsh environments
- Special double-lip seal
- Protection against all common acidic and alkaline cleaning agents
- Suitable for applications in the food industry
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Terminal chamber
Attributes
| Ambient Temperature | -40…+100 °C |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Terminal chamber, Removable cage clamp terminals |
| Housing Material | Stainless steel, 1.4404 (AISI 316L) |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68/IP69K |
| Rated Switching Distance | 30 mm |
| Special Feature | uprox+, Wash down, Sn +, Factor 1, Resistant to magnetic fields, Pressure resistant |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3814244 |
|---|---|
| MPN | NI30U-EM30WDTC-AP6X |
| Alternate Part # | 1634765 |
| UPC/EAN | 4047101209914 |
