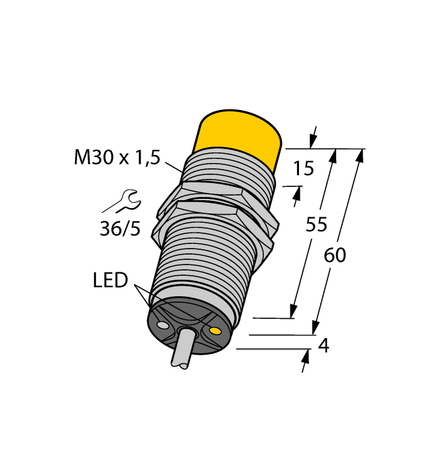

Turck NI20U-M30-ADZ30X2
SKU: CS3814083MPN: NI20U-M30-ADZ30X2Alternate Part #: 4282810UPC/EAN: 4047101136975
4282810 - UPROX, BARREL, AC, CABLE
$243.44
UnitAvailable on backorder
Product Details
Inductive Sensor
- M30 × 1.5 threaded tube
- Chrome-plated brass
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- AC 2-wire, 20…250 VAC
- DC 2-wire, 10…300 VDC
- NO contact
- Cable connection
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Metal, CuZn, Chrome-plated |
| Mounting | Non-flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | NO contact, 2-wire |
| Protection Class | IP68 |
| Rated Switching Distance | 20 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.010 kHz |
Specifications
| SKU | CS3814083 |
|---|---|
| MPN | NI20U-M30-ADZ30X2 |
| Alternate Part # | 4282810 |
| UPC/EAN | 4047101136975 |
You may also like
Turck NI20U-M30-AP6X
$164.56UnitTurck NI20U-M30-AN6X
$164.56Unit

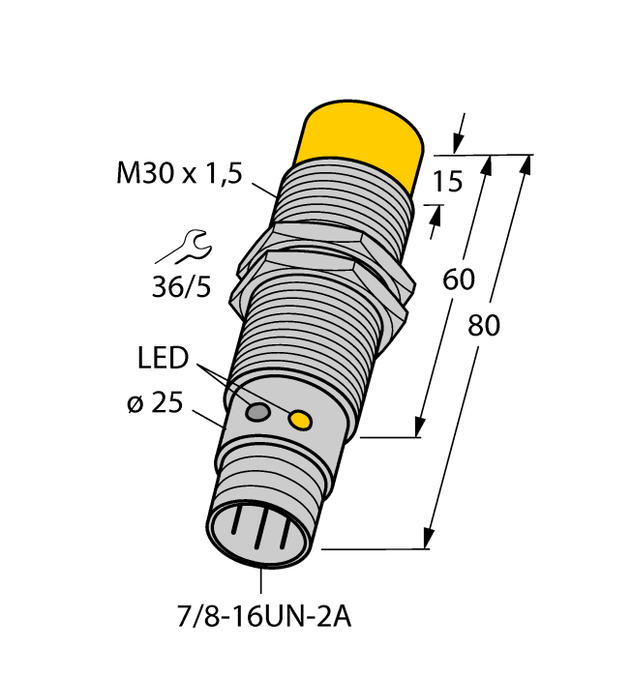

Turck NI20U-G30-ADZ30X2-B1131
$259.46Unit
Turck NI20U-G30-ADZ30X2-B3131
$259.46UnitTurck NI20U-M30-AN6X 7M
$155.03UnitTurck NI20U-GT30-ADZ30X2-B3131
$284.40Unit
Turck NI20U-GT30-ADZ30X2-B1131
$284.40Unit
Turck NI20U-M30-AN6X-H1141
$164.56UnitTurck NI20U-M30-VP4X-H1141
$187.68Unit

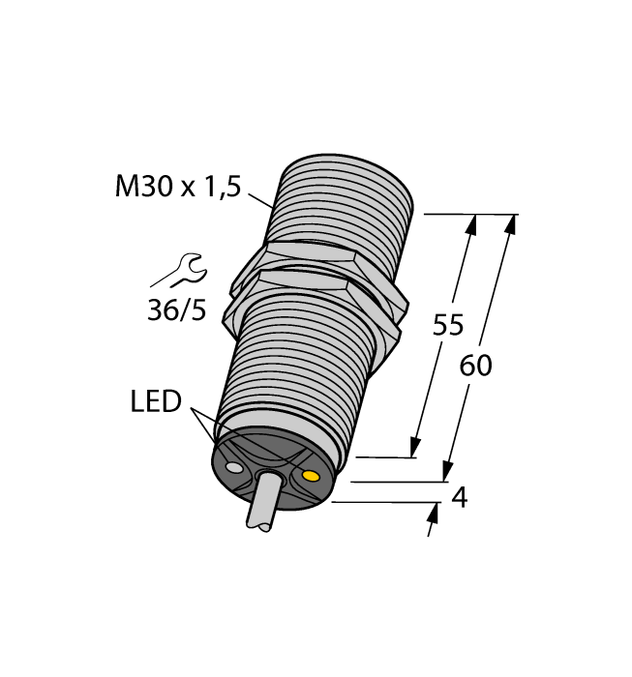

Turck BI10U-MT30-ADZ30X2
