Turck NI20U-M30-VP4X-H1141
SKU: CS3814084MPN: NI20U-M30-VP4X-H1141Alternate Part #: 1582457UPC/EAN: 4047101126914
1582457 - UPROX, BARREL, DC, CON. M12
$187.68
UnitAvailable on backorder
Product Details
Inductive Sensor
- M30 × 1.5 threaded tube
- Chrome-plated brass
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 4-wire, 10…65 VDC
- Changeover contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, CuZn, Chrome-plated |
| Mounting | Non-flush |
| Operating Voltage | 10…65 VDC |
| Output Function | Complementary contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 20 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS3814084 |
|---|---|
| MPN | NI20U-M30-VP4X-H1141 |
| Alternate Part # | 1582457 |
| UPC/EAN | 4047101126914 |
You may also like
Turck BI10U-M30-VP4X-H1141
$187.68Unit
Turck NI20U-M30-AP6X-H1141
$164.56UnitTurck NI20U-M30-RP6X-H1141
$164.56UnitTurck NI20U-EM30-VP4X-H1141
$191.75UnitTurck NI20U-M30-AN6X-H1141
$164.56UnitTurck NI20U-M30-AN6X2-H1141
$170.04Unit
Turck NI8U-MT12E-VP4X-H1141
$171.25UnitTurck BI15U-M30-RP6X-H1141
$147.22Unit

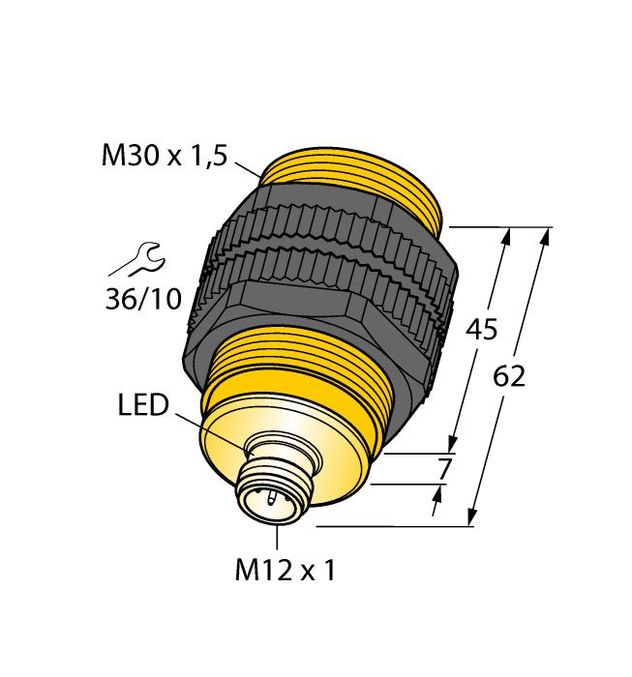

Turck NI20U-S30-VP6X-H1141
