Turck BI10U-MT30-ADZ30X2
SKU: CS3788095MPN: BI10U-MT30-ADZ30X2Alternate Part #: 4209430UPC/EAN: 4047101136326
4209430 - UPROX, BARREL, AC, CABLE
$274.76
UnitAvailable on backorder
Product Details
Inductive Sensor
- Threaded barrel, M30 x 1.5
- Brass, PTFE-coated
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- AC 2-wire, 20…250 VAC
- DC 2-wire, 10…300 VDC
- NO contact
- Cable connection
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Metal, CuZn, PTFE-coated |
| Mounting | Flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | NO contact, 2-wire |
| Protection Class | IP68 |
| Rated Switching Distance | 10 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated |
| Switching Frequency | 0.010 kHz |
Specifications
| SKU | CS3788095 |
|---|---|
| MPN | BI10U-MT30-ADZ30X2 |
| Alternate Part # | 4209430 |
| UPC/EAN | 4047101136326 |
You may also like
Turck BI10U-GT30-ADZ30X2-B3131
$284.40Unit
Turck BI10U-GT30-ADZ30X2-B1131
$284.40Unit
Turck BI10U-MT30-AN6X-H1141
$187.78Unit
Turck BI10U-G30-ADZ30X2-B1131
$259.46UnitTurck BI10U-MT30-AP6X2-H1141
$177.54UnitTurck BI10U-MT30-AP6X-H1141
$187.78UnitTurck BI10U-G30-ADZ30X2-B3131
$259.46Unit
Turck BI10U-MT30-AD4X-0.3-RS4.23/XOR
$189.40Unit
Turck BI10U-MT30-AP6X2-H1141/S1589
$203.90Unit
Turck BI5U-MT18-ADZ30X2
$266.86Unit

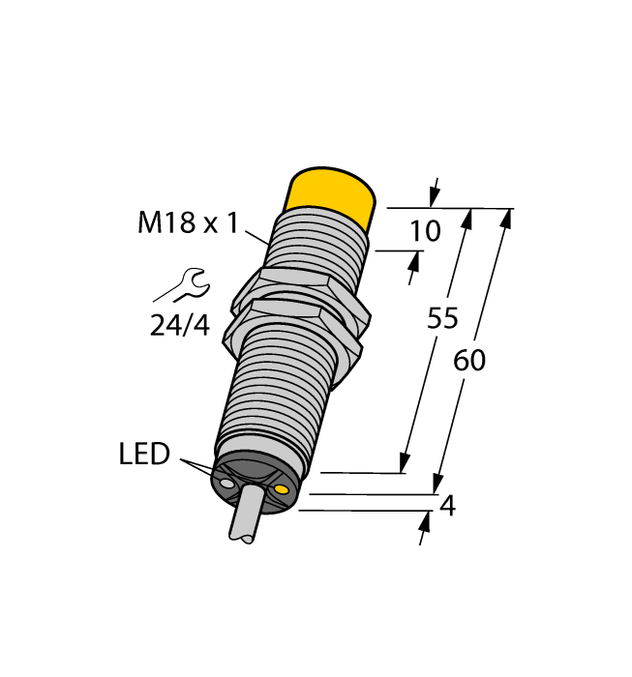

Turck NI12U-MT18-ADZ30X2
