Turck NI2-Q9.5-AP6-0.2-FS4.4X3/S304
SKU: CS3813999MPN: NI2-Q9.5-AP6-0.2-FS4.4X3/S304Alternate Part #: 1650062UPC/EAN: 4047101081831
1650062 - FERRITE, CLAMP, DC, CON. M12
$257.53
UnitAvailable on backorder
Product Details
Inductive Sensor

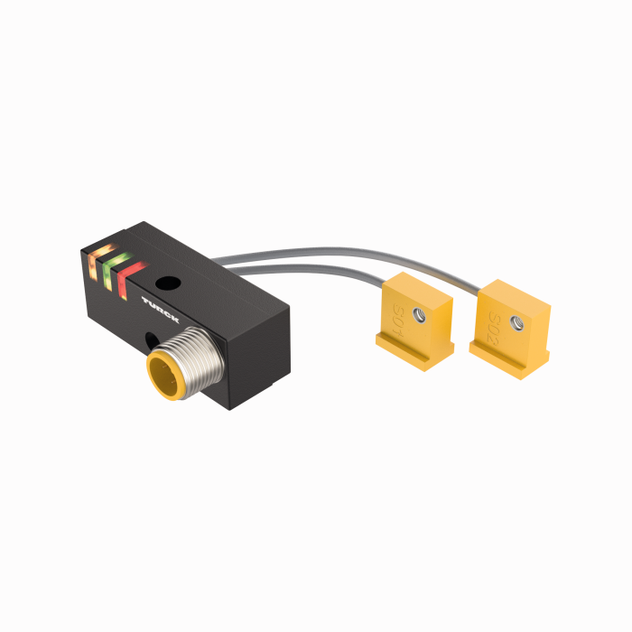

Monitoring Kit for Power Clamps
- Q9,5 power block with two connected sensors and LEDs
- Relocatable block 0°…90°, with cross drilling for flexible cable routing
- Plastic, PP GR-20
- Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT
- 2 x NO contact, PNP output
- DC 4-wire, 10…30 VDC
Attributes
| Ambient Temperature | -25…+70 °C |
| Customs Tariff Number | 85365019900.0000 |
| Design | Monitoring kit for power clamps |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, PBT-GF20-V0 |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 2 mm |
| Special Feature | Resistant to magnetic fields |
| Switching Frequency | 0.030 kHz |
Specifications
| SKU | CS3813999 |
|---|---|
| MPN | NI2-Q9.5-AP6-0.2-FS4.4X3/S304 |
| Alternate Part # | 1650062 |
| UPC/EAN | 4047101081831 |
You may also like
Turck NI2-Q9.5-AP6-0.15-FS4.4X3/S304
$257.53UnitTurck NI2-Q9.5-AP6-0.1-FS4.4X3/S304
$257.53UnitTurck NI2-Q9.5-AP6-0.3-FS4.4X3/S304
$257.53Unit

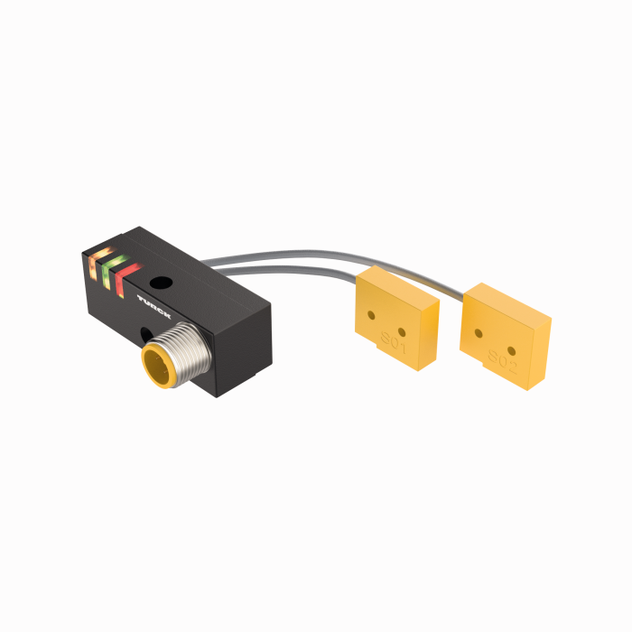

Turck NI2-Q6.5-AP6-0.2-FS4.4X3/S304
$257.53UnitTurck NI2-Q6.5-AP6-0.16-FS4.4X3/S304
$257.53UnitTurck NI2-Q6.5-AP6-0.1-FS4.4X3/S304
$257.53UnitTurck NI2-Q6.5-AP6-0.15-FS4.4X3/S304
$257.53UnitTurck NI2-Q6.5-AP6-0.13-FS4.4X3/S304
$257.53UnitTurck NI2-Q6.5-AN6-0.16-FS4.4X3/S304
$257.53UnitTurck NI2-Q6.5-AN6-0.1-FS4.4X3/S304
$257.53Unit

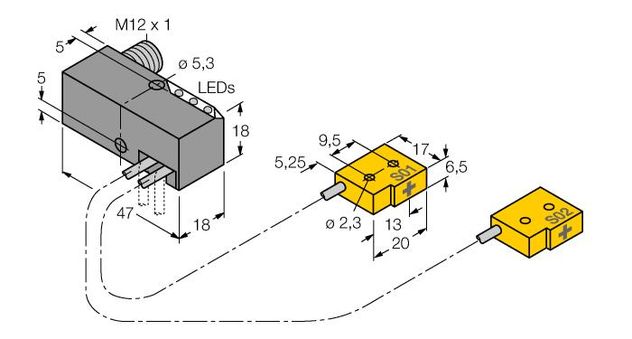

Turck NI1.5-Q6.5-AP6-0.1-FS4.4X3/S304
Contact us for pricing and availability

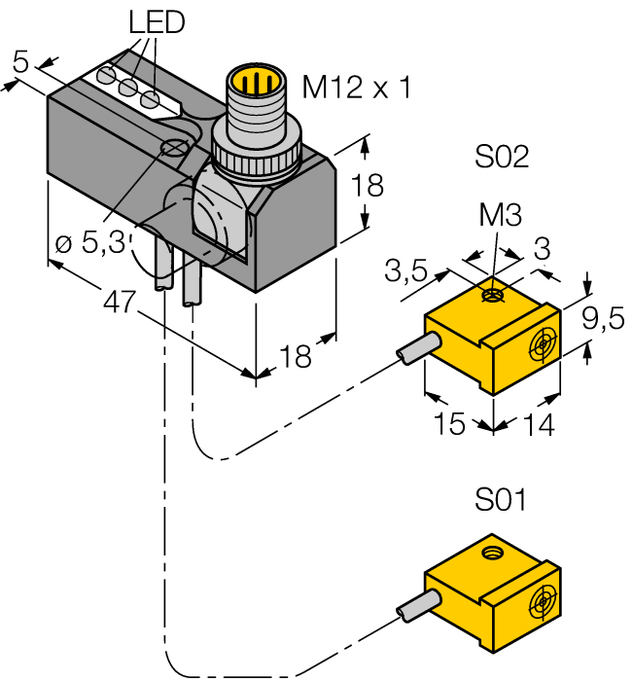

Turck NI2-Q9.5-0.1-BDS-2AP6X3-H1141/S34
