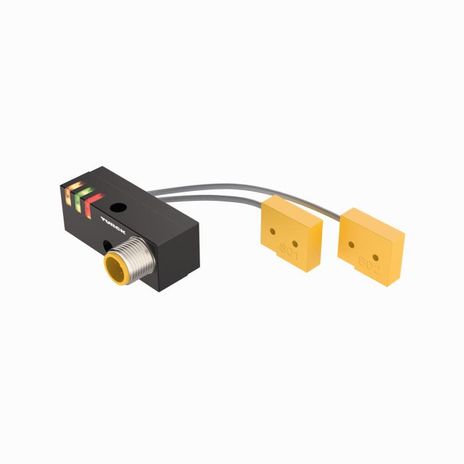

Turck NI1.5-Q6.5-AP6-0.1-FS4.4X3/S304
SKU: CS3813739MPN: NI1.5-Q6.5-AP6-0.1-FS4.4X3/S304Alternate Part #: 1650209
1650209 - FERRITE, CLAMP, DC, CON. M12
Contact us for pricing and availability
Product Details
Inductive Sensor
Monitoring Kit for Power Clamps
- Q6,5 power block with two connected sensors and LEDs
- Relocatable block 0°…90°, with cross drilling for flexible cable routing
- Plastic, PBT‐GF20‐V0
- Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT
- 2 x NO contact, PNP output
- DC 4-wire, 10…30 VDC
Attributes
| Ambient Temperature | -25…+70 °C |
| Customs Tariff Number | 85365019900.0000 |
| Design | Monitoring kit for power clamps |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, PBT-GF20-V0 |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 1.5 mm |
| Special Feature | Resistant to magnetic fields |
| Switching Frequency | 0.030 kHz |
Specifications
| SKU | CS3813739 |
|---|---|
| MPN | NI1.5-Q6.5-AP6-0.1-FS4.4X3/S304 |
| Alternate Part # | 1650209 |
