Turck NI15-EM30-LIU 7M

SKU: CS3813896MPN: NI15-EM30-LIU 7MAlternate Part #: 1535608UPC/EAN: 4047101386622

1535608 - FERRITE, BARREL, ANALOG, CABLE

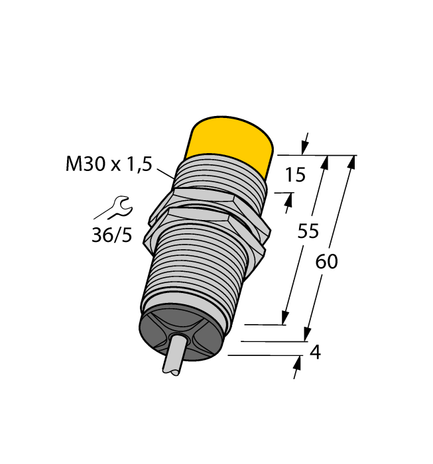

Turck NI15-EM30-LIU 7M, NI15-M30-LIU
$395.32
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

With Analog Output

  • M30 × 1.5 threaded tube
  • Stainless steel, 1.4301
  • 4‐wire, 15…30 VDC
  • Analog output
  • 0…10 V and 0…20 mA
  • Cable connection

Attributes

Ambient Temperature -25…+70 °C
Construction Size M30 x 1.5
Current Output 0…20 mA
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270802 -/- Indcutive distance sensor
Electrical Connection Cable
Housing Material Stainless steel, 1.4301 (AISI 304)
Measuring Range 2…12 mm
Mounting Non-flush
Operating Voltage 15…30 VDC
Output Function Analog output
Protection Class IP67
Rated Switching Distance 15 mm
Voltage Output 0…10 V

Specifications

SKUCS3813896
MPNNI15-EM30-LIU 7M
Alternate Part #1535608
UPC/EAN4047101386622
