Turck BLCDN-4M12MT-4DO-2A-P
SKU: CS3791733MPN: BLCDN-4M12MT-4DO-2A-PAlternate Part #: 6811009UPC/EAN: 4047101198263
6811009 - DEVICENET
$611.78
UnitAvailable on backorder
Product Details
BL compact™ fieldbus station for DeviceNet™
4 Digital PNP Outputs
- On-machine Compact fieldbus I/O block
- DeviceNet™ slave
- 125 / 250 / 500 kbps
- Two 5-pole M12 connectors for fieldbus connection
- 2 rotary switches for node address
- IP67, IP69K
- M12 I/O connectors
- LEDs indicating status and diagnostics
- Electronics galvanically separated from the field level via optocouplers
- 4 digital PNP outputs, 24 VDC
- Max. 2A per output (4A total)
Attributes
| Ambient Temperature | -40…+70 °C |
| Connection Technology Signal | M12 |
| Customs Tariff Number | 85176200000.0000 |
| Device Type | I/O Module, Compact station |
| Ecl Ss Code V5 1 4 | 27250313 -/- Communication interface, passive |
| Fieldbus Connection Technology | 2 × M12 |
| Fieldbus Protocol | DeviceNet |
| Fieldbus Transmission Rate | 125/250/500 kbps |
| Protection Class | IP67/IP69K |
| Signal Type | Digital output |
Specifications
| SKU | CS3791733 |
|---|---|
| MPN | BLCDN-4M12MT-4DO-2A-P |
| Alternate Part # | 6811009 |
| UPC/EAN | 4047101198263 |
You may also like

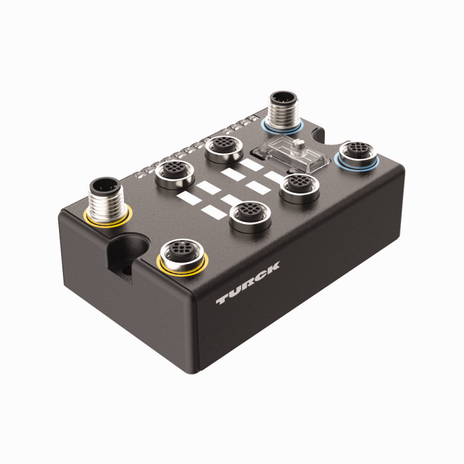

Turck BLCDN-4M12MT-8DO-0.5A-P
$611.78Unit
Turck BLCDP-4M12MT-4DO-2A-P
Contact us for pricing and availabilityTurck BLCDN-4M12MT-8XSG-PD
$647.22UnitTurck BLCDN-4M12MT-8DO-0.5A-N
$638.33Unit
Turck BLCDN-4M12S-8DI-P
$505.44Unit
Turck BLCDN-8M12L-8DI-P-8DI-P
$656.11Unit

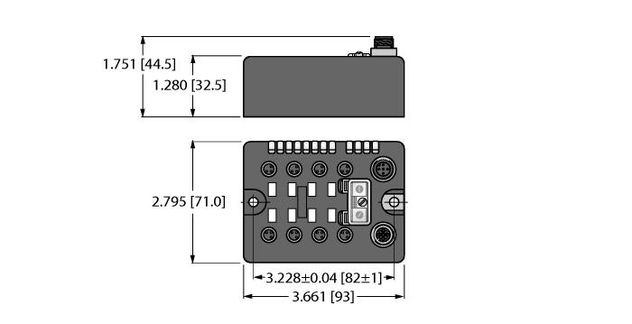

Turck BLCDN-8M8S-8DI-P
$638.33UnitTurck BLCDN-8M12L-8DI-P-8DI-N
$651.11Unit

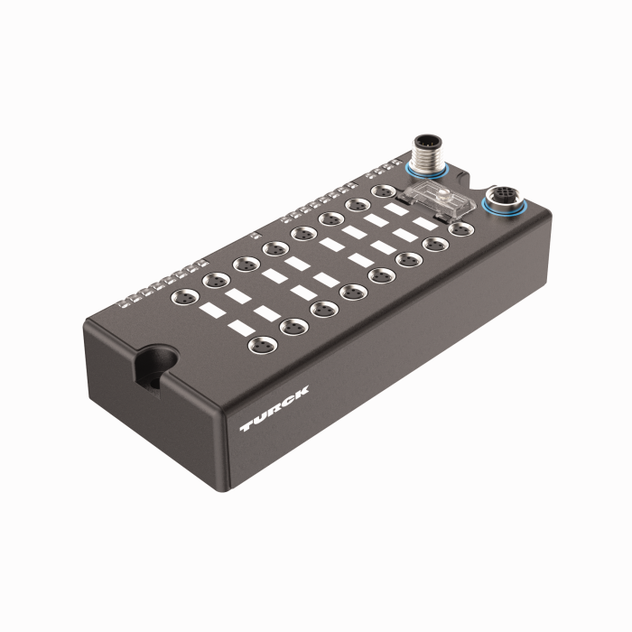

Turck BLCDN-16M8L-8DI-P-8DI-P
