Turck BLCDN-16M8L-8DI-P-8DI-P
SKU: CS3791721MPN: BLCDN-16M8L-8DI-P-8DI-PAlternate Part #: 6811033UPC/EAN: 4047101432367
6811033 - DEVICENET
$966.11
UnitAvailable on backorder
Product Details

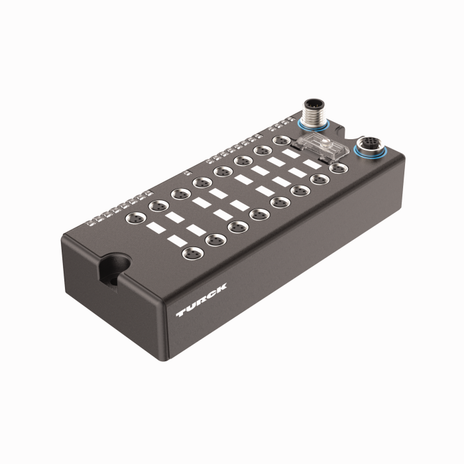

BL compact™ fieldbus station for DeviceNet™
16 Digital PNP Inputs
- On-machine Compact fieldbus I/O block
- DeviceNet™ slave
- 125 / 250 / 500 kbps
- Two 5-pole M12 connectors for fieldbus connection
- 2 rotary switches for node address
- IP67
- M8 I/O connectors
- LEDs indicating status and diagnostics
- Electronics galvanically separated from the field level via optocouplers
- 16 digital PNP inputs, 24 VDC
Attributes
| Ambient Temperature | -40…+70 °C |
| Connection Technology Signal | M8 |
| Customs Tariff Number | 85176200000.0000 |
| Device Type | I/O Module, Compact station |
| Ecl Ss Code V5 1 4 | 27250313 -/- Communication interface, passive |
| Fieldbus Connection Technology | 2 × M12 |
| Fieldbus Protocol | DeviceNet |
| Fieldbus Transmission Rate | 125/250/500 kbps |
| Protection Class | IP67 |
| Signal Type | Digital input |
Specifications
| SKU | CS3791721 |
|---|---|
| MPN | BLCDN-16M8L-8DI-P-8DI-P |
| Alternate Part # | 6811033 |
| UPC/EAN | 4047101432367 |
