Turck BI5U-QP08-AP6X2-0.7-PSG3M
SKU: CS3789706MPN: BI5U-QP08-AP6X2-0.7-PSG3MAlternate Part #: 1663220
1663220 - UPROX, RECT., DC, PIGTAIL M8
Contact us for pricing and availability
Product Details
Inductive Sensor
With Extended Switching Distance
- Rectangular, height 8 mm
- Active face on top
- Plastic, PP
- Factor 1 for all metals
- Increased switching distance
- Resistant to magnetic fields
- Mountable on metal
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end M8 x 1
Attributes
| Ambient Temperature | -25…+70 °C |

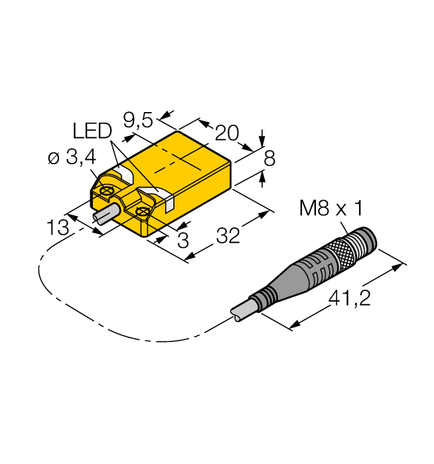

| Construction Size | 32 x 20 x 8 mm, QP08 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M8 × 1 |
| Housing Material | Plastic, PP, Yellow |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 5 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.250 kHz |
Specifications
| SKU | CS3789706 |
|---|---|
| MPN | BI5U-QP08-AP6X2-0.7-PSG3M |
| Alternate Part # | 1663220 |
