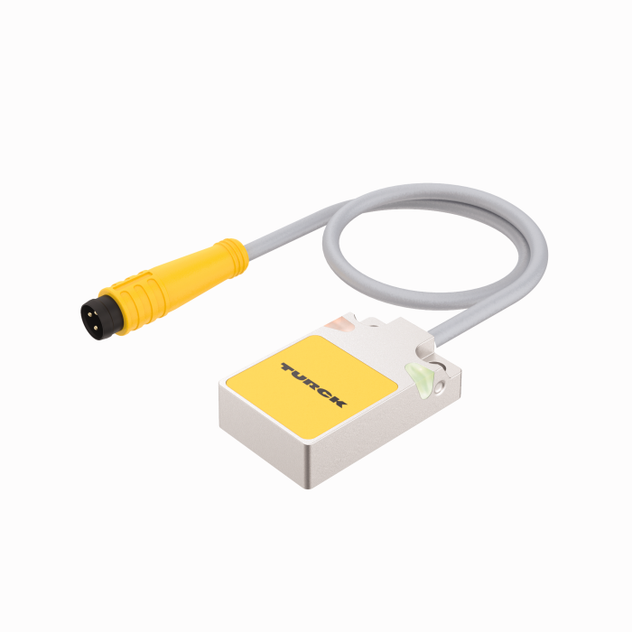

Turck BI5U-Q08-AP6X2-0.2-PSG3
SKU: CS3789668MPN: BI5U-Q08-AP6X2-0.2-PSG3Alternate Part #: 1608995
1608995 - UPROX, RECT., DC, PIGTAIL M8
$153.82
UnitAvailable on backorder
Product Details
Inductive Sensor
- Rectangular, height 8 mm
- Active face on top
- Metal, Zamak, nickel-plated
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end M8 x 1
Attributes
| Ambient Temperature | -30…+85 °C |

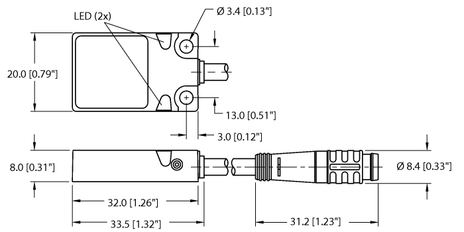

| Construction Size | 32 x 20 x 8 mm, Q08 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M8 × 1 |
| Housing Material | Metal, Zamak, Nickel Plated |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 5 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.250 kHz |
Specifications
| SKU | CS3789668 |
|---|---|
| MPN | BI5U-Q08-AP6X2-0.2-PSG3 |
| Alternate Part # | 1608995 |
