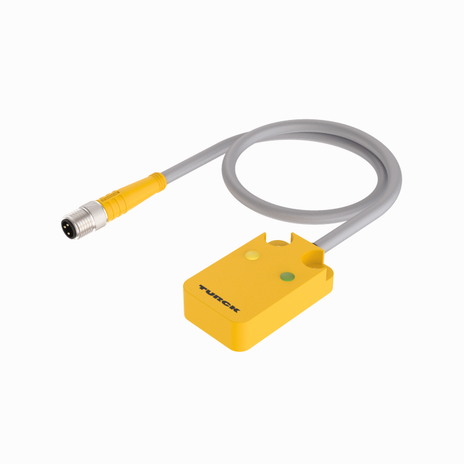

Turck BI8U-Q10-AP6X2-0.2-PSG3M
SKU: CS3789953MPN: BI8U-Q10-AP6X2-0.2-PSG3MAlternate Part #: 1662093
1662093 - UPROX, RECT., DC, PIGTAIL M8
$116.19
UnitAvailable on backorder
Product Details
Inductive Sensor
- Rectangular, height 10.8 mm
- Active face on top
- Plastic, PBT-GF30-V0
- Factor 1 for all metals
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end M8 x 1
Attributes
| Ambient Temperature | -30…+85 °C |

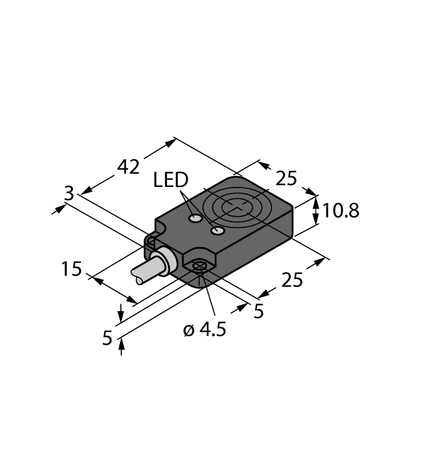

| Construction Size | 42 x 25 x 10.8 mm, Q10 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M8 × 1 |
| Housing Material | Plastic, PBT-GF30-V0 |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 8 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.250 kHz |
Specifications
| SKU | CS3789953 |
|---|---|
| MPN | BI8U-Q10-AP6X2-0.2-PSG3M |
| Alternate Part # | 1662093 |
