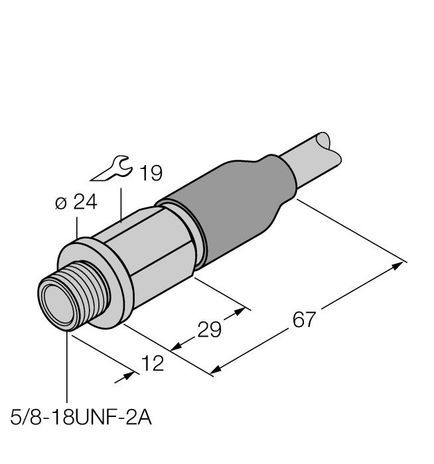

Turck BI4-EG16CA-RP45LD/S100

1584007 - FERRITE, BARREL, DC, CABLE

Inductive Sensor

For Use in Vehicle Board Nets

• Threaded barrel, ⅝”
• Stainless steel, 1.4401

• For vehicle board nets, 12 V and 24 V
• Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2
• Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11)
• Extended temperature range
• High protection class IP68/IP69K
• Protection against salt spray and rapid temperature change
• Laser engraved label, permanently legible

• DC 3-wire, 8.4…65 VDC
• NC contact, PNP output
• Cable connection
