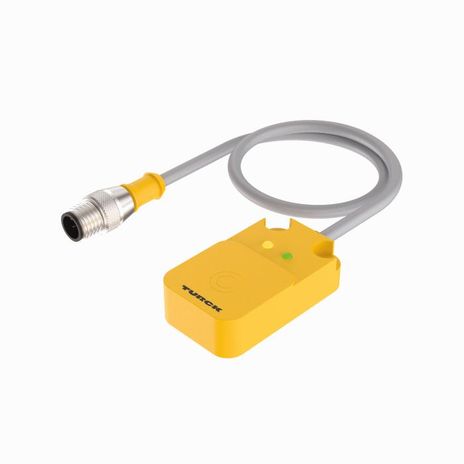

Turck BI10-Q14-AP45X2LD-1-RS4T

1584093 - FERRITE, BARREL, DC, PIGTAIL M

Inductive Sensor

For Use in Vehicle Board Nets

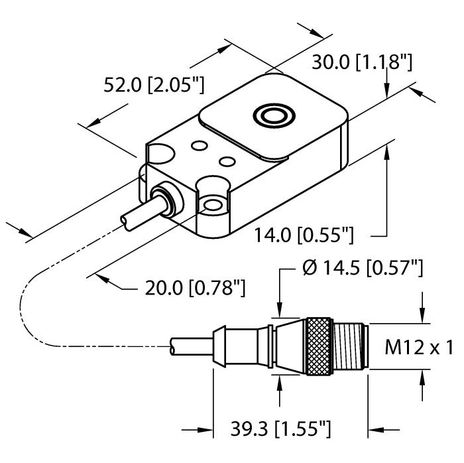

• Rectangular, height 14 mm
• Active face on top
• Plastic, PBT‐GF30‐V0

• For vehicle board nets, 12 V and 24 V
• Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2
• Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11)
• Extended temperature range
• High protection class IP68/IP69K
• Protection against salt spray and rapid temperature change
• Laser engraved label, permanently legible

• DC 3-wire, 8.4…65 VDC
• NO contact, PNP output
• Pigtail with M12 x 1 male connector
