Turck BI4-EM12E-AN45XLD
SKU: CS4209348MPN: BI4-EM12E-AN45XLDAlternate Part #: 1584004UPC/EAN: 4047101201130
1584004 - FERRITE, BARREL, DC, CABLE
$175.11
UnitAvailable on backorder
Product Details
Inductive Sensor
For Use in Vehicle Board Nets

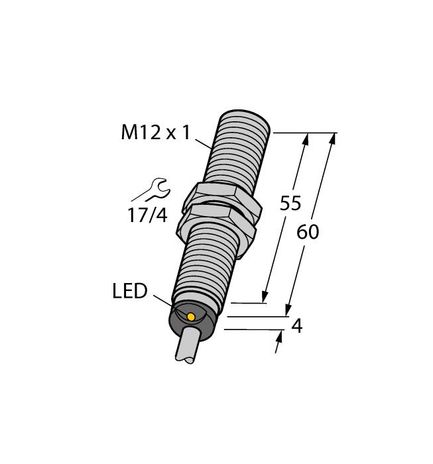

- Threaded barrel, M12 x 1
- Stainless steel, 1.4301
- For vehicle board nets, 12 V and 24 V
- Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2
- Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11)
- Extended temperature range
- High protection class IP68/IP69K
- Protection against salt spray and rapid temperature change
- Laser engraved label, permanently legible
- DC 3-wire, 8.4…65 VDC
- NO contact, NPN output
- Cable connection
Attributes
| Ambient Temperature | -40…+85 °C |
| Construction Size | M12 x 1 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Stainless steel, 1.4301 (AISI 304) |
| Mounting | Flush |
| Operating Voltage | 8.6…65 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP68/IP69K |
| Rated Switching Distance | 4 mm |
| Special Feature | Commercial vehicle specification, Sn + |
| Switching Frequency | 2.0 kHz |
Specifications
| SKU | CS4209348 |
|---|---|
| MPN | BI4-EM12E-AN45XLD |
| Alternate Part # | 1584004 |
| UPC/EAN | 4047101201130 |
