Turck BI2U-EH6.5-AP6X-0.4-RSE 4T-P7X2
SKU: CS3789076MPN: BI2U-EH6.5-AP6X-0.4-RSE 4T-P7X2Alternate Part #: 4281192
4281192 - FERRITE, BARREL, DC, PIGTAIL M
$176.42
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance
- Smooth barrel, Ø 6.5 mm
- Stainless steel, 1.4427 SO
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Large switching distance
- High switching frequency
- Recessed mountable
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end M12 x 1
Attributes
| Ambient Temperature | -30…+85 °C |

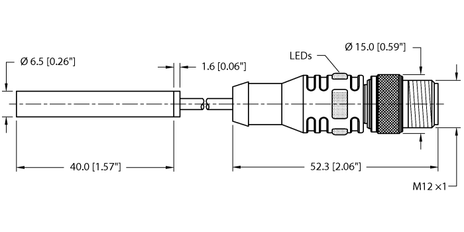

| Construction Size | Ø 6.5 mm |
| Design | Smooth barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Stainless steel, 1.4427 SO |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 2 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 2.0 kHz |
Specifications
| SKU | CS3789076 |
|---|---|
| MPN | BI2U-EH6.5-AP6X-0.4-RSE 4T-P7X2 |
| Alternate Part # | 4281192 |
