Turck BI22-Q20-RP6X2/S400-S946

SKU: CS3789045MPN: BI22-Q20-RP6X2/S400-S946Alternate Part #: 4690236UPC/EAN: 4047101229813

4690236 - FERRITE, RECT., DC, CABLE

Turck BI22-Q20-RP6X2/S400-S946
$167.71
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

With Extended Temperature Range

  • Rectangular, height 20 mm
  • Active face on top
  • Plastic, PBT-GF30-V0
  • Temperatures up to -40 °C
  • DC 3-wire, 10…30 VDC
  • NC contact, PNP output
  • Cable connection

Attributes

Ambient Temperature -40…+70 °C

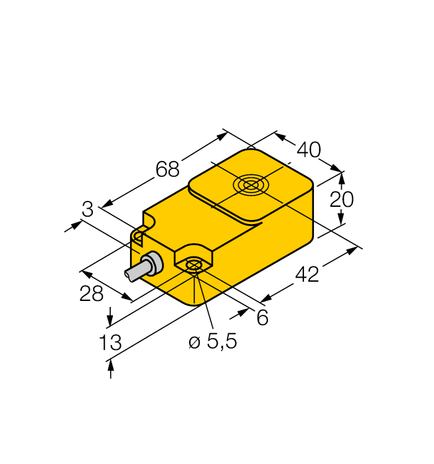

Construction Size 68 x 40 x 20 mm, Q20
Customs Tariff Number 85365019900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable
Housing Material Plastic, PBT-GF30-V0, Yellow
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NC contact, PNP
Protection Class IP67
Rated Switching Distance 22 mm
Switching Frequency 0.250 kHz

Specifications

SKUCS3789045
MPNBI22-Q20-RP6X2/S400-S946
Alternate Part #4690236
UPC/EAN4047101229813
