Turck BI15U-Q20-VP6X2-0.2-RS4.4T
SKU: CS3788266MPN: BI15U-Q20-VP6X2-0.2-RS4.4TAlternate Part #: 1608690
1608690 - FERRITE, RECT., DC, PIGTAIL M1
$143.88
UnitAvailable on backorder
Product Details
Inductive Sensor
- Rectangular, height 20 mm
- Active face on top
- Plastic, PBT-GF30-V0
- Factor 1 for all metals
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 4-wire, 10…30 VDC
- Changeover contact, PNP output
- Cable with male end M12 x 1
Attributes
| Ambient Temperature | -30…+85 °C |

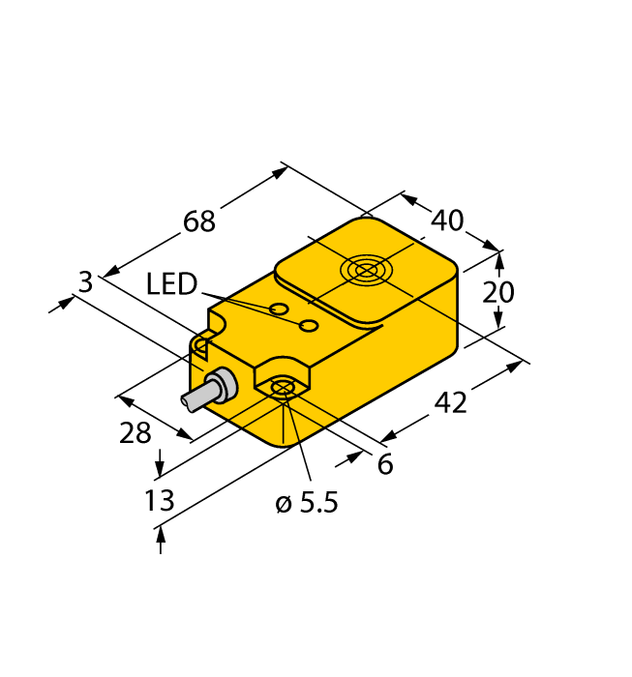

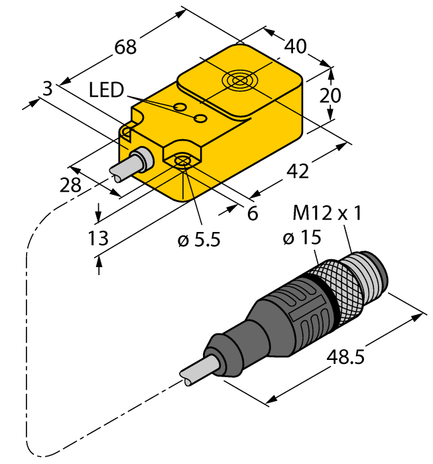

| Construction Size | 68 x 40 x 20 mm, Q20 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Plastic, PBT-GF30-V0 |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | Complementary contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 15 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.020 kHz |
Specifications
| SKU | CS3788266 |
|---|---|
| MPN | BI15U-Q20-VP6X2-0.2-RS4.4T |
| Alternate Part # | 1608690 |
