All ProductsTurck

Turck BI20R-Q14-AN6X2

SKU: CS3789017MPN: BI20R-Q14-AN6X2Alternate Part #: 1406320UPC/EAN: 4047101068863

1406320 - FERRITE, RING, DC, CABLE

Turck BI20R-Q14-AN6X2, BI20R-Q14-AP6X2
$287.85
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

Ring Sensor

  • Rectangular, height 14 mm
  • Plastic, PBT‐GF30‐V0
  • Static output behaviour
  • Output pulse length min. 100 ms
  • DC 3-wire, 10…30 VDC
  • NO contact, NPN output
  • Cable connection

Attributes

Ambient Temperature -25…+70 °C

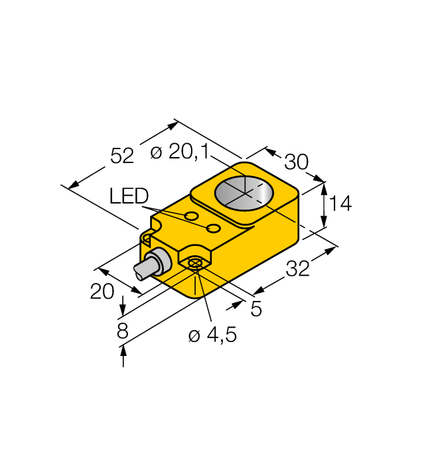

Construction Size 52 x 30 x 14 mm, Q14
Customs Tariff Number 85365019900.0000
Design Ring sensor
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable
Housing Material Plastic, PBT-GF30-V0
Inside Ring Diameter D 20.1 mm
Operating Voltage 10…30 VDC
Output Function NO contact, NPN
Protection Class IP67
Special Feature Ring sensor, static output
Switching Frequency 0.0080 kHz

Specifications

SKUCS3789017
MPNBI20R-Q14-AN6X2
Alternate Part #1406320
UPC/EAN4047101068863
