Turck BI20-CA40-ADZ30X2-B3131/S34/S1590
SKU: CS3788980MPN: BI20-CA40-ADZ30X2-B3131/S34/S1590Alternate Part #: 4283594
4283594 - FERRITE, RECT., AC, CON. ½IN
Contact us for pricing and availability
Product Details
Inductive Sensor
Resistant to Magnetic Fields
- Rectangular, height 40 mm
- Variable orientation of active face in 5 directions
- Sensor housing GD-ALSI 12
- Active face PA6-GF30
- AC 2-wire, 20…250 VAC
- DC 2-wire, 10…300 VDC
- NO contact
- ½” male connector
Attributes
| Ambient Temperature | -25…+70 °C |

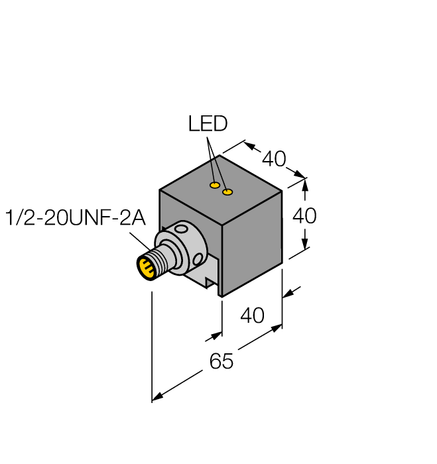

| Construction Size | 65 x 40 x 40 mm, CA40 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, ½″ |
| Housing Material | Metal, GD-AlSi 12 |
| Mounting | Flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | NO contact, 2-wire |
| Protection Class | IP67 |
| Rated Switching Distance | 20 mm |
| Special Feature | Resistant to magnetic fields |
| Switching Frequency | 0.020 kHz |
Specifications
| SKU | CS3788980 |
|---|---|
| MPN | BI20-CA40-ADZ30X2-B3131/S34/S1590 |
| Alternate Part # | 4283594 |
You may also like

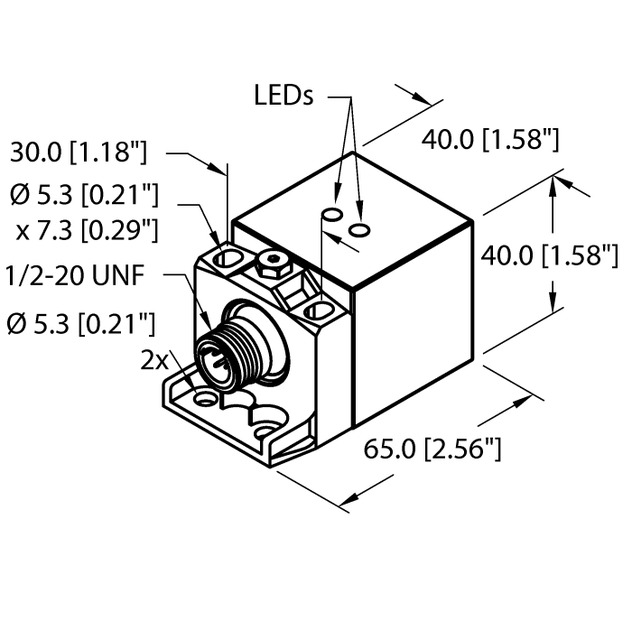

Turck BI20U-CA40-ADZ30X2-B3131/S1590 W/BS 2.1
