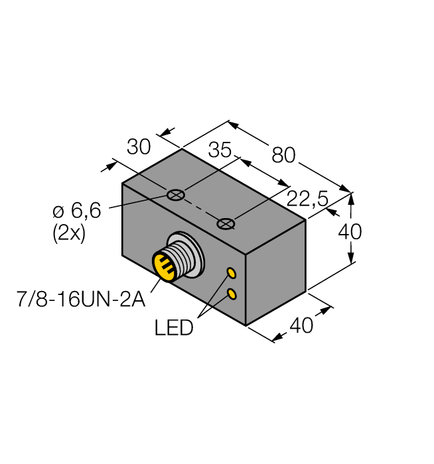

Turck BI20-CA4080-ADZ30X2-B1131

SKU: CS4209682MPN: BI20-CA4080-ADZ30X2-B1131Alternate Part #: 4283400UPC/EAN: 4047101019094

4283400 - FERRITE, RECT., AC, CON. ⅞IN

Turck BI20-CA4080-ADZ30X2-B1131
$601.65
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Rectangular, height 40 mm
  • Sensor housing GD-ALSI 12
  • Plastic, Duroplast
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • NO contact
  • ⅞” male connector

Attributes

Ambient Temperature 0…+70 °C
Construction Size 80 x 40 x 40 mm, CA4080
Customs Tariff Number 85365080.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, ⅞″
Housing Material Metal, GD-AlSi 12
Mounting Flush
Operating Voltage 20…250 VAC / 10…300 VDC
Output Function NO contact, 2-wire
Protection Class IP67
Rated Switching Distance 20 mm
Switching Frequency 0.020 kHz

Specifications

SKUCS4209682
MPNBI20-CA4080-ADZ30X2-B1131
Alternate Part #4283400
UPC/EAN4047101019094
