Turck BI15-Q20-AP6X2-H1141

SKU: CS3788226MPN: BI15-Q20-AP6X2-H1141Alternate Part #: 1608305UPC/EAN: 4047101077780

1608305 - FERRITE, RECT., DC, CON. M12

Turck BI15-Q20-AN6X2-H1141, BI15-Q20-AP6X2-H1141, BI15-Q20-Y1X-H1141, BI15U-Q20-AN6X2-H1141, BI15U-Q20-AP6X2-H1141, BI15U-Q20-RP6X2-H1141, BI20-Q20-AN45X2LD-H1141, BI20-Q20-AP45X2LD-H1141, NI25-Q20-AN6X2-H1141, NI25-Q20-AP6X2-H1141, NI25NF-Q20-AN6X2-H1141
$118.13
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Rectangular, height 20 mm
  • Active face on top
  • Plastic, PBT-GF30-V0
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • M12 x 1 male connector

Attributes

Ambient Temperature -25…+70 °C

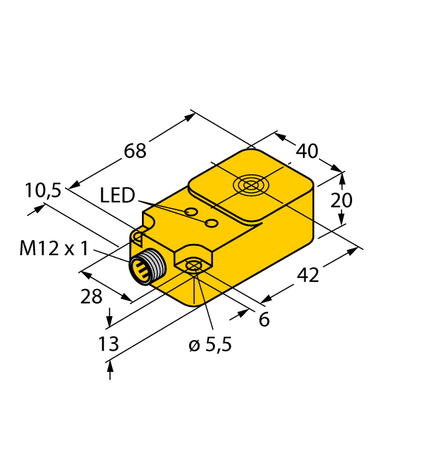

Construction Size 68 x 40 x 20 mm, Q20
Customs Tariff Number 85365019900.0000
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, M12 × 1
Housing Material Plastic, PBT-GF30-V0
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 15 mm
Switching Frequency 0.250 kHz

Specifications

SKUCS3788226
MPNBI15-Q20-AP6X2-H1141
Alternate Part #1608305
UPC/EAN4047101077780
