Turck BI15-CK40-AP6X2-H1141 W/BS2.1
SKU: CS3722014MPN: BI15-CK40-AP6X2-H1141 W/BS2.1Alternate Part #: 1625090UPC/EAN: 4047101079333
1625090 - FERRITE, RECT., DC, CON. M12
$190.01
UnitAvailable on backorder
Product Details
Inductive Sensor
- Rectangular, height 40 mm
- Variable orientation of active face in 5 directions
- Plastic, PBT‐GF30‐V0
- High luminance corner LEDs
- Optimum view on supply voltage and switching state from any position
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -25…+70 °C |

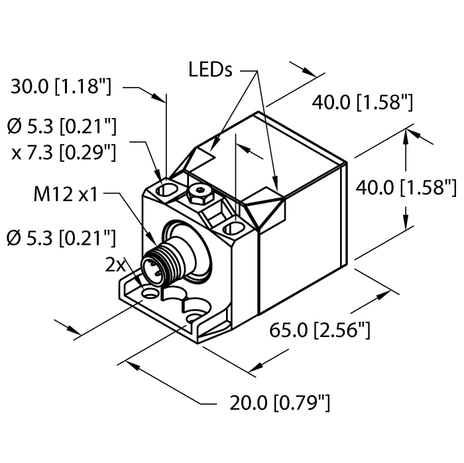

| Construction Size | 65 x 40 x 40 mm, CK40 |
| Customs Tariff Number | 85365080.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PBT-GF20-V0, Black |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 15 mm |
| Switching Frequency | 0.150 kHz |
Specifications
| SKU | CS3722014 |
|---|---|
| MPN | BI15-CK40-AP6X2-H1141 W/BS2.1 |
| Alternate Part # | 1625090 |
| UPC/EAN | 4047101079333 |
