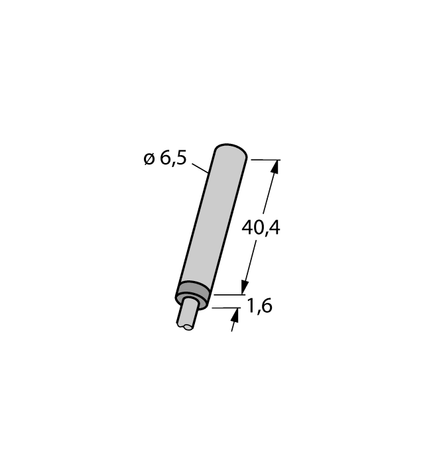

Turck BI1.5-EH6.5-LU
SKU: CS3787843MPN: BI1.5-EH6.5-LUAlternate Part #: 1533002UPC/EAN: 4047101145823
1533002 - FERRITE, BARREL, ANALOG, CABLE
Contact us for pricing and availability
Product Details
Inductive Sensor
With Analog Output
- Smooth barrel, Ø 6.5 mm
- Stainless steel, 1.4427 SO
- 3‐wire, 15…30 VDC
- Analog output
- 0…10 V
- Cable connection
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | Ø 6.5 mm |
| Customs Tariff Number | 85365019900.0000 |
| Design | Smooth barrel |
| Ecl Ss Code V5 1 4 | 27270802 -/- Indcutive distance sensor |
| Electrical Connection | Cable |
| Housing Material | Stainless steel, 1.4427 SO |
| Measuring Range | 0.25…1.25 mm |
| Mounting | Flush |
| Operating Voltage | 15…30 VDC |
| Output Function | Analog output |
| Protection Class | IP67 |
| Voltage Output | 0…10 V |
Specifications
| SKU | CS3787843 |
|---|---|
| MPN | BI1.5-EH6.5-LU |
| Alternate Part # | 1533002 |
| UPC/EAN | 4047101145823 |
You may also like
Turck BI1.5-EG08-LU
$263.82Unit
Turck BI1.5-EG08-LU-H1341
$313.90Unit
Turck BI1.5-EH6.5-0.2-Q20-2LU-H1141/S950
$3,582.38Unit
Turck BI1.5-EH6.5-AP6X/S1367
$142.25Unit

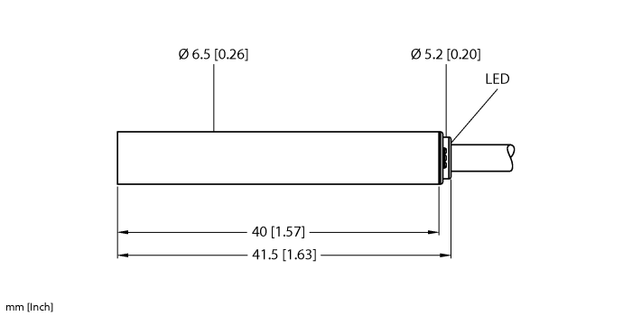

Turck BI1.5-EH6.5-AP6X
$135.46UnitTurck BI1.5-EH6.5-AN6X
$135.46Unit

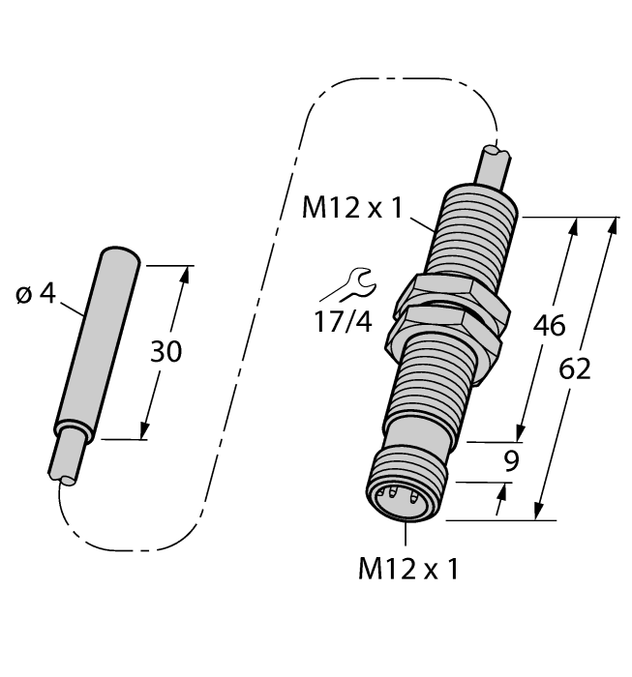

Turck BI1.5-EH04-0.3-M12-SIU-H1141
$344.01UnitTurck BI1.5-EH6.5-AP6X/S100
$219.92Unit
Turck BI1.5-EG05-0.3-M12-SIU-H1141
$344.01Unit

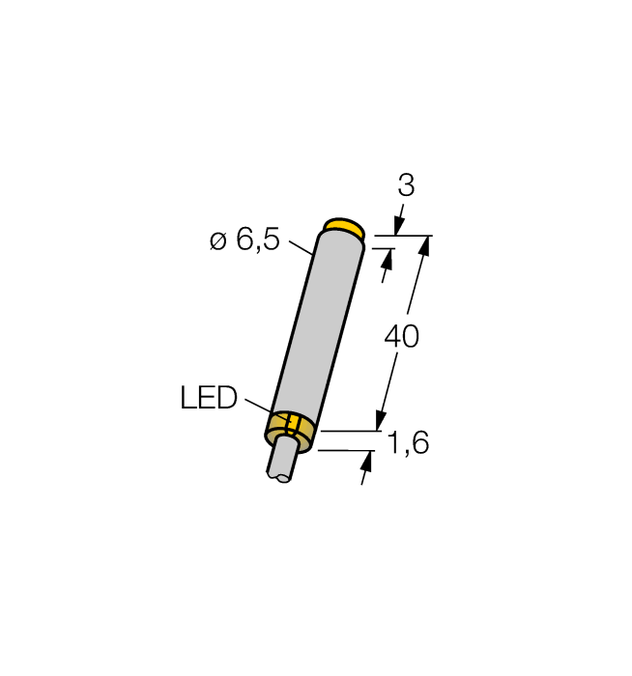

Turck NI3-EH6.5-AN6X/S1367
$142.06Unit
Turck BI1.5-EH6.5-Y1-V1130
$92.99Unit

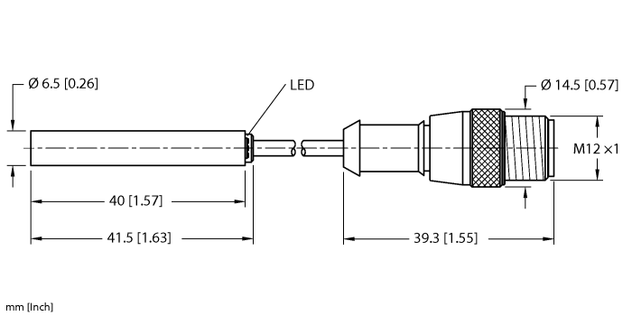

Turck BI1.5-EH6.5-AP6X-0.2-RS4T
