Turck BI1.5-EH6.5-AP6X/S100

SKU: CS3787838MPN: BI1.5-EH6.5-AP6X/S100Alternate Part #: 4612001UPC/EAN: 4047101155426

4612001 - FERRITE, BARREL, DC, CABLE

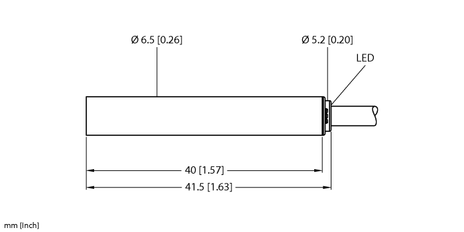

Turck BI1.5-EH6.5-AN6X, BI1.5-EH6.5-AP6X/S100, BI1.5-EH6.5-AP6X/S100/S1589, BI2-EH6.5-AN6X, BI2-EH6.5-AP6X, TURCK
$219.92
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

With Increased Temperature Range

  • Smooth barrel, Ø 6.5 mm
  • Stainless steel, 1.4305 (AISI 303)
  • Temperatures up to +100 °C
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Cable connection

Attributes

Ambient Temperature -25…+100 °C
Construction Size Ø 6.5 mm
Customs Tariff Number 85365019900.0000
Design Smooth barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable
Housing Material Stainless steel, 1.4305 (AISI 303)
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 1.5 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS3787838
MPNBI1.5-EH6.5-AP6X/S100
Alternate Part #4612001
UPC/EAN4047101155426
